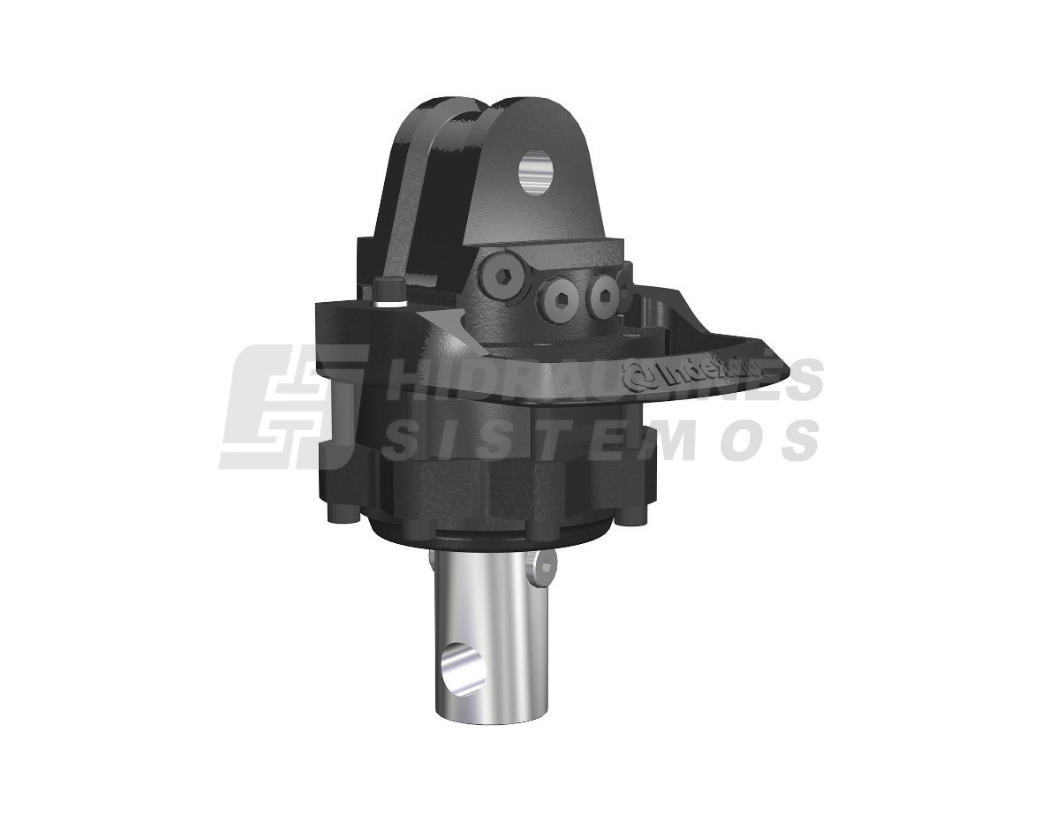

Rotator GV 4-63/30 Indexator
Rotator GV 4-63/30 Indexator
Add to wishlist

Rotator GV 4-63/30 Indexator

Full product specification

1006,00 € excl. VAT

Indexator GV 4-63/30 5040009 4.5t, shaft ø63 [ø30], link ø25

Out of stock

Indexator GV 4-63/30 5040009 4.5t, shaft ø63 [ø30], link ø25

Enter your email address and we will notify you as soon as the item is available.
SKU: 4041688 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

Indexator GV 4-63/30 is a hydraulic grapple rotator designed for lighter forestry and agricultural machinery as well as general material handling applications. The rotator provides continuous 360° rotation and transfers hydraulic flow for grapple opening and closing functions.

The maximum static axial load is 45 kN (approx. 4.5 t), while the maximum dynamic axial load is 25 kN (approx. 2.5 t). Torque at 250 bar is 1150 Nm.

The upper interface is 75 mm wide with a Ø25 mm mounting pin hole. The lower interface consists of a Ø63 mm shaft with a Ø30 mm mounting hole.

Technical Data

  • Manufacturer: Indexator
  • Model: GV 4-63/30
  • Part number: 5040009
  • Type: Hydraulic grapple rotator
  • Rotation: 360°
  • Maximum static axial load: 45 kN (~4.5 t)
  • Maximum dynamic axial load: 25 kN (~2.5 t)
  • Torque at 25 MPa: 1150 Nm
  • Maximum rotation oil flow: 12 L/min
  • Maximum rotation working pressure: 25 MPa (250 bar)
  • Maximum grapple opening pressure: 30 MPa (300 bar)
  • Maximum grapple closing pressure: 30 MPa (300 bar)
  • Upper interface: 75 mm
  • Upper mounting hole: Ø25 mm
  • Lower interface: Ø63 mm
  • Lower mounting hole: Ø30 mm
  • Hydraulic connections: G3/8
  • Weight: 27 kg
