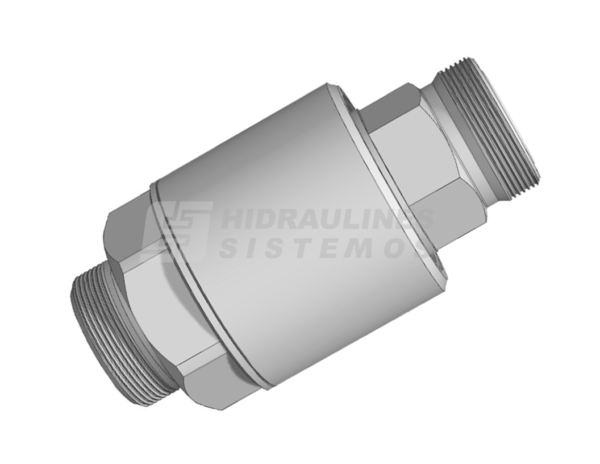

Rotary coupling K100 ORFS 1″-14 UNS MxM Indexator

Full product specification

246,84 € incl. VAT

Out of stock

Enter your email address and we will notify you as soon as the item is available.
SKU: 9010065 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

The Indexator K100 ORFS 1″-14 UNS MxM is a high-pressure swivel hydraulic adapter designed for connecting hydraulic hoses and rotating assemblies. The ORFS sealing system ensures highly reliable sealing performance and leak protection even under heavy loads and vibration.

The swivel construction compensates hose movement and reduces hose twisting during operation. Widely used in cranes, rotators, forestry equipment, and mobile hydraulic systems.

According to the Indexator catalog, this version corresponds to part number 9010065.

Technical data

  • Manufacturer: Indexator
  • Series: K100 ORFS
  • Part number: 9010065
  • Type: Swivel adapter
  • Design: Male x Male (MxM)
  • Connection type: ORFS
  • Threads:

    • B1: 1″-14 UNS
    • B2: 1″-14 UNS
  • Length (L): 120 mm
  • Outer diameter (ØA): 43 mm
  • Internal passage (ØD): 12.5 mm
  • Wrench sizes:

    • NV1: 36 mm
    • NV2: 24 mm
  • Weight: 0.83 kg
  • Maximum working pressure: 45 MPa
  • Dash size: 10
  • Seal kit: 6002516
  • Operating temperature: -30 °C to +100 °C
