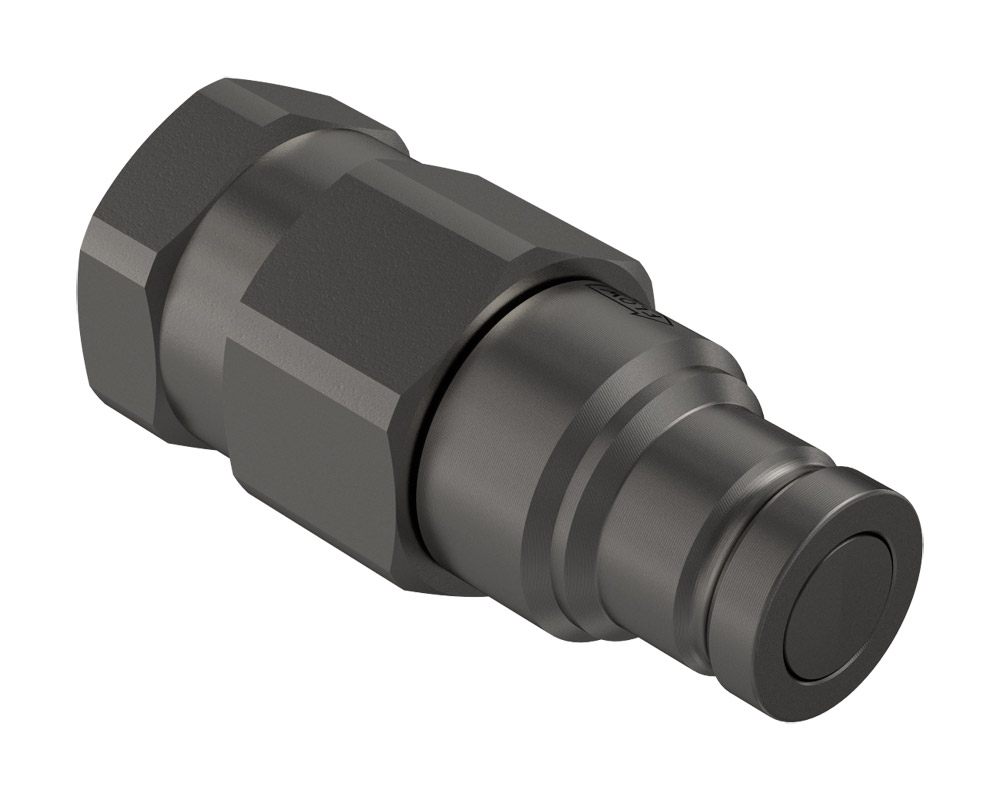

Quick coupling 08 M UNF 7/8′ – 14 -female Flat face 350bar, seria FASTER

Full product specification

47,00 € excl. VAT

FFH0858SAEM

Out of stock

FFH0858SAEM

Enter your email address and we will notify you as soon as the item is available.
SKU: GJ08T78 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

Technical Data

  • Manufacturer: Faster
  • Part number: FFH08 58SAE M
  • ERP code: FFH0858SAEM
  • Series: FFH
  • Type: Flat Face hydraulic quick coupling plug
  • Coupling half: Male / Plug
  • Nominal size: 1/2″ / 12.5 mm
  • Thread: 7/8″-14 UNF Female ORB
  • Thread standard: ISO 11926-1
  • Interchange standard: ISO 16028
  • Maximum working pressure: 35 MPa / 350 bar
  • Flow rate: 110 l/min at Δp 0.2 MPa
  • Operating temperature: –25 to +100 °C
  • Seals: NBR + PUR
  • Hex: 34 mm
  • Maximum body diameter: 37 mm
  • Overall length: 76 mm
  • Weight: 315.4 g
