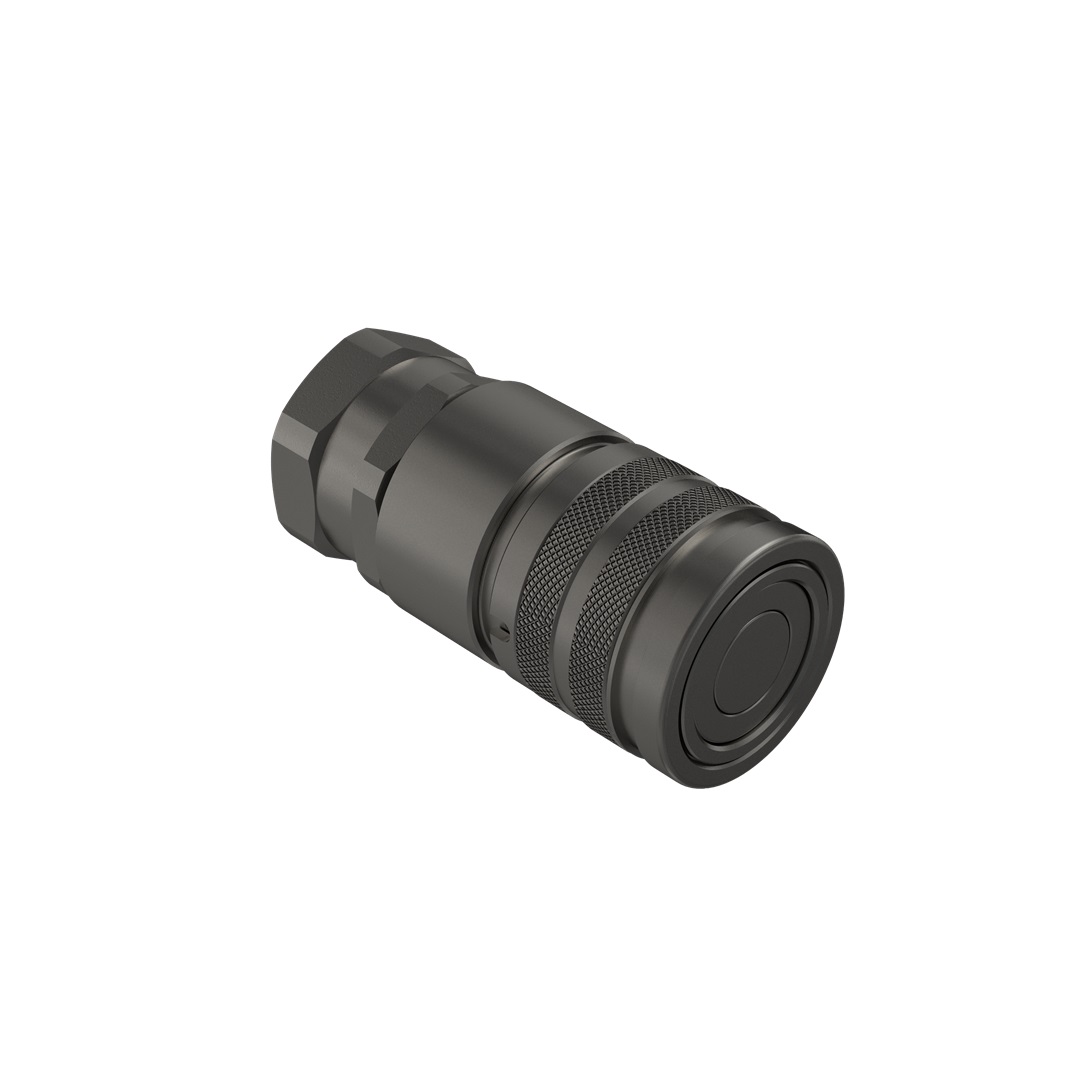

Quick coupling 08 F UNF 7/8' - 14 -female Flat face 350 bar, seria FASTER
Quick coupling 08 F UNF 7/8' - 14 -female Flat face 350 bar, seria FASTER
Add to wishlist

Quick coupling 08 F UNF 7/8′ – 14 -female Flat face 350 bar, seria FASTER

Full product specification

70,00 € excl. VAT

FFH0858SAEF

Out of stock

FFH0858SAEF

Enter your email address and we will notify you as soon as the item is available.
SKU: GJ08M78 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

Technical Data

  • Manufacturer: Faster
  • Part number: FFH08 58SAE F
  • ERP code: FFH0858SAEF
  • Series: FFH
  • Type: Flat Face hydraulic quick coupling
  • Coupling half: Female socket
  • Nominal size: 12.5 mm / 1/2″
  • Connection: 7/8″-14 UNF Female ORB
  • Connection type: SAE O-Ring Boss
  • Interchange standard: ISO 16028
  • Working pressure: 35 MPa / 350 bar
  • Flow rate: 110 l/min at Δp 0.2 MPa
  • Operating temperature: –25 to +100 °C
  • Seals: NBR + PUR
  • Outside diameter: 38 mm
  • Hex: 34 mm
  • Overall length: 81.3 mm
  • Weight: approx. 452.4 g
