Quick coupling 06 F M16x1,5-bulkhead, two connection sides
19,00 € excl. VAT
CPV062/1615 F
Out of stock
CPV062/1615 F
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

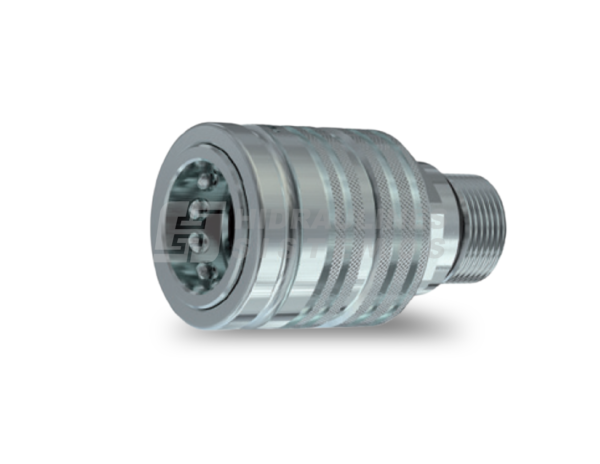

This is a hydraulic quick coupling (female socket) designed for fast and leak-free connection and disconnection of hydraulic lines. It is used in hydraulic systems (especially in agricultural and construction machinery) for quick hose and equipment connection without tools. Ensures minimal leakage and safe operation.
Technical data:
- Model: CPV062/1615 F
- Size: DN6 (06)
- Flow rate: ~24 l/min
- Thread: M16×1.5 (10L)
- Coupling size: 3/8″
- Type: quick coupling (female, socket)
- Standard: ISO 8434-1 (L series)
- Temperature range: approx. -25°C to +125°C
- Push-pull type (one-hand connection/disconnection)
- Double shut-off (valves on both sides)
- Metal body, resistant to pressure and mechanical impact
- Seal material: NBR
