PVBS32 spool 25 liter A/B/T – LS-A/B 157B7131 – Danfoss

Full product specification

117,50 € excl. VAT

157B7131

Out of stock

157B7131

Enter your email address and we will notify you as soon as the item is available.
SKU: 157B7131 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

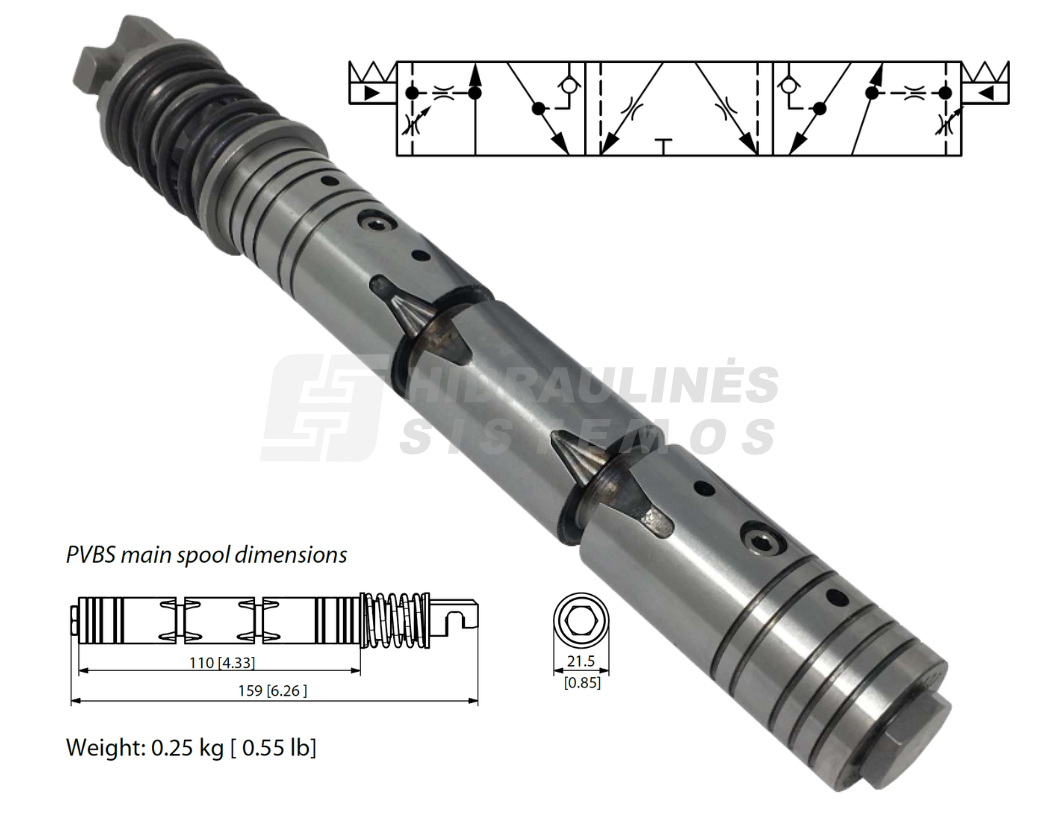

The Danfoss PVBS32 157B7131 is an original PVG 32 main control spool designed for pressure-compensated (PC) PVB work sections with LS-A/B functionality. This 4/3-way proportional spool provides accurate load-independent flow control, ensuring smooth and precise operation of hydraulic actuators under varying load conditions.

With a rated flow of 25 l/min, this spool is particularly suitable for hydraulic functions requiring precise and sensitive control rather than high flow capacity. It is commonly used in mobile hydraulic systems where accurate cylinder or motor control is essential.

Code Breakdown

  • PVBS32 – Main spool for Danfoss PVG 32 valve systems
  • PC – Pressure compensated section
  • S – Flow control spool characteristic
  • B – Closed neutral position
  • 4/3 – Four-way, three-position spool
  • 25 l/min – Rated flow capacity
  • LS-A/B – Load sensing from both A and B work ports
  • 157B7131 – Danfoss part number

Technical Data

  • Manufacturer: Danfoss
  • Series: PVG 32
  • Model: PVBS32
  • Part number: 157B7131
  • Type: Main control spool
  • Function: Flow control
  • Neutral position: Closed center
  • Rated flow: 25 l/min
  • Load sensing: LS-A/B
  • Valve type: 4/3 proportional spool
  • Compatibility:

    • Danfoss PVG 32 valve systems
    • Pressure-compensated PVB sections with LS-A/B
