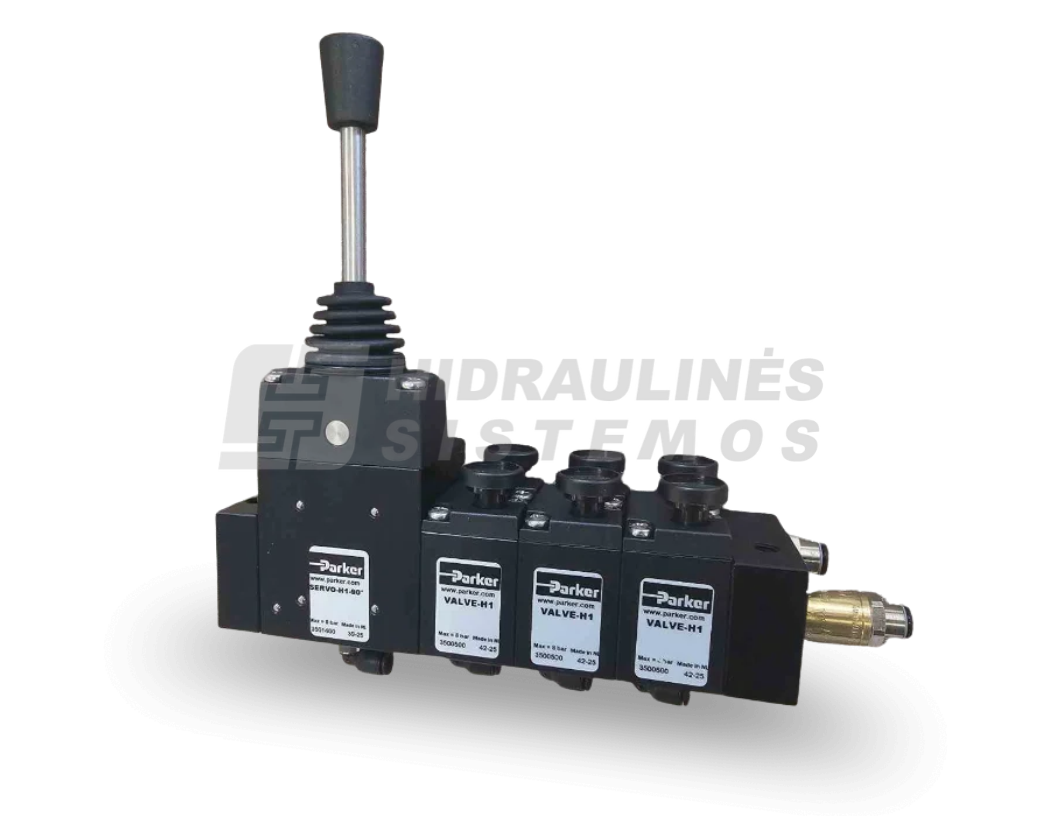

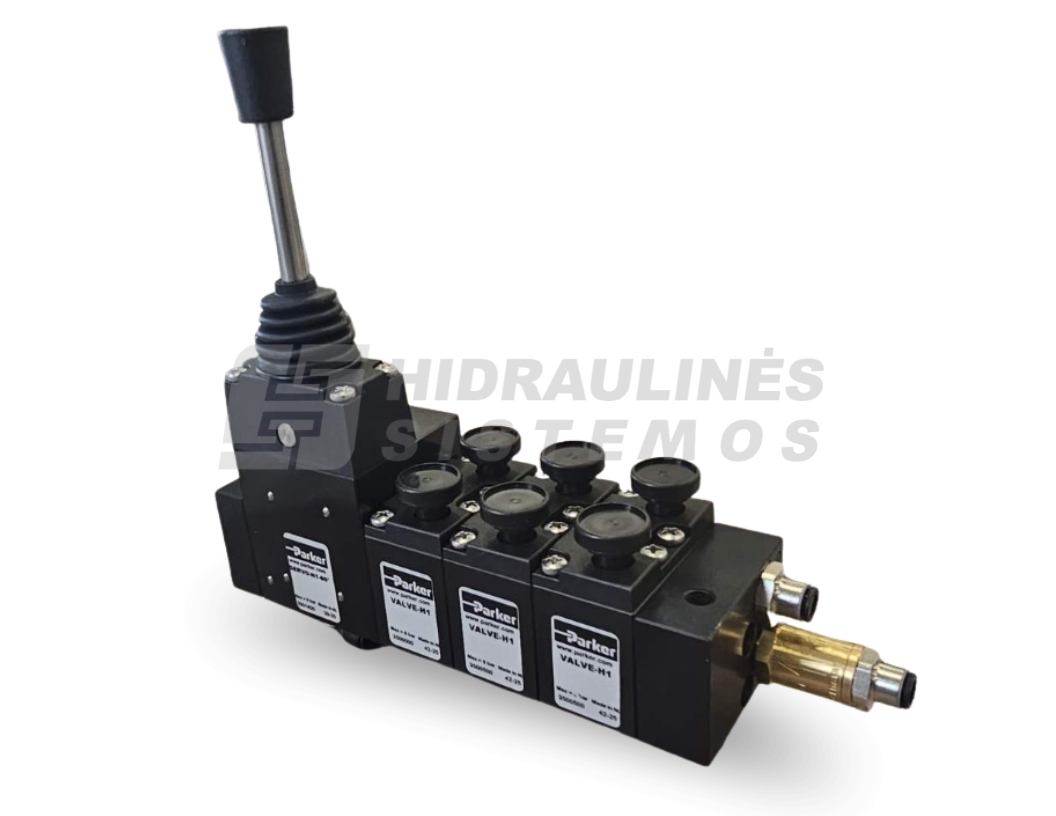

Pneumatic joystick Parker H1-90-4
Pneumatic joystick Parker H1-90-4
Pneumatic joystick Parker H1-90-4
Pneumatic joystick Parker H1-90-4
Add to wishlist

Pneumatic joystick Parker H1-90-4

Full product specification

800,00 € excl. VAT

3501400, 3500500, H1-90-4, 34070104

Out of stock

3501400, 3500500, H1-90-4, 34070104

Enter your email address and we will notify you as soon as the item is available.
SKU: VP6M Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

Parker Servo H1-90-4 is a pneumatic proportional remote control lever designed for controlling hydraulic directional valves and other pneumatically operated hydraulic system functions. The proportional Servo H module provides a variable control signal according to lever position and is suitable for mobile and industrial equipment including loaders, mobile cranes, hook-arm systems and other hydraulic machinery. 3501400

The H1-90-4 designation identifies a single proportional Servo H valve with 90° handle orientation and Ø4 mm push-in pneumatic outlet connections. The Parker standard order code for this module is 3501400. 3501400

The control assembly is supplemented with push-button Valve H modules for additional pneumatic functions. The modular Servo H / Valve H design allows proportional control and additional on/off functions to be combined into one compact control unit. 3501400

Technical Data

  • Manufacturer: Parker
  • Series: Servo H / Valve H
  • Servo module: H1-90-4
  • Servo module part number: 3501400
  • Control type: pneumatic, proportional
  • Handle orientation: 90°
  • Pneumatic outlet connections: Ø4 mm push-in
  • Working medium: compressed air
  • Maximum supply pressure: 8 bar
  • Control pressure: 0–8 bar
  • Flow rate: 187 l/min
  • Operating temperature: –10 °C to +70 °C
  • Servo H body: anodised aluminium
  • Seals: nitrile rubber (NBR)
  • Lever: stainless steel
