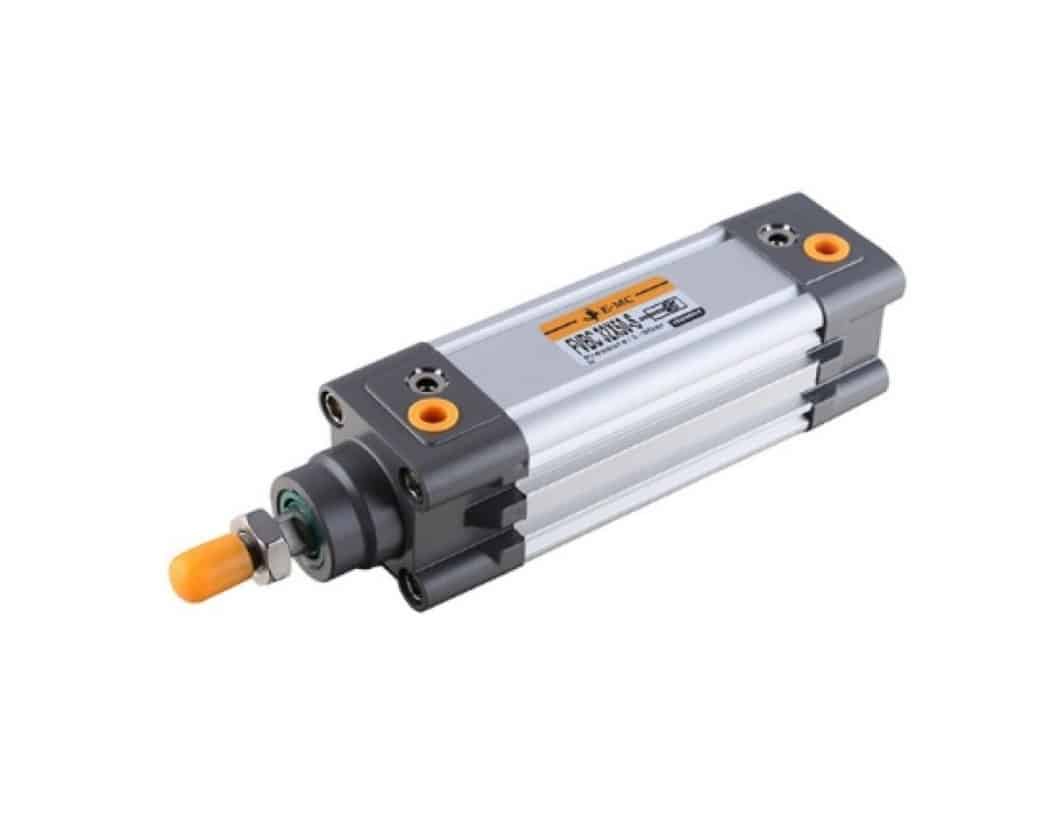

Pneumatic cylinder ISO15552 50 x 125two-sided with a magnet
98,00 € excl. VAT
FVBC50X125S
Out of stock
FVBC50X125S
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
FVBC50X125S is a standard double-acting pneumatic cylinder manufactured according to ISO 15552. The cylinder has a 50 mm bore and 125 mm stroke.
An integrated piston magnet allows the piston position to be detected using compatible magnetic sensors. Adjustable pneumatic cushioning at both ends of the stroke provides smooth deceleration of the piston.
Technical Data
- Model: FVBC50X125S
- Standard: ISO 15552
- Acting type: Double acting
- Bore: 50 mm
- Stroke: 125 mm
- Magnet: Yes
- Working medium: Compressed air
- Maximum working pressure: 10 bar
- Speed range: 50–800 mm/s
- Port size: G1/4
- Cushioning: Adjustable air cushioning
- Cushion stroke: 30 mm
- Barrel: Hard-anodised aluminium
- Piston rod: Hard chrome-plated carbon steel
- Seals: PU
