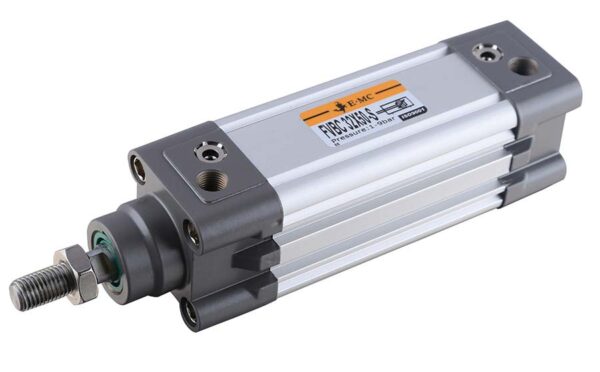

Pneumatic cylinder ISO15552 40 x 500 two-sided with a magnet
100,00 € excl. VAT
FVBC40X500S
Out of stock
FVBC40X500S
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
This is a standard ISO 15552 pneumatic cylinder designed to generate linear motion using compressed air. It is used in industrial systems for pushing, pulling, pressing, or positioning components. The double-acting design allows controlled movement in both directions.
- Piston diameter: 40 mm
- Stroke: 500 mm
- Operating type: double acting
- Working medium: filtered compressed air (~40 μm)
- Working pressure: 0.1 – 1.0 MPa (1–10 bar)
- Max pressure: ~1.5 MPa
- Operating temperature: -20 °C to +70 °C
- Speed: 50 – 800 mm/s
- Cushioning: air cushion
- Port thread: G1/4 (typical for Ø40)
