Plug ATEX II 2 GD 22MM
5,00 € excl. VAT
W0970510070
Out of stock
W0970510070
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

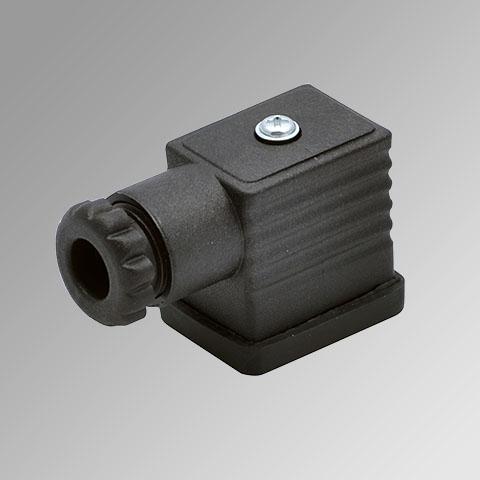

Metal Work W0970510070 is a 22 mm electrical connector designed for connecting compatible solenoid valve coils. It provides the electrical connection to the coil and is suitable for applications in potentially explosive atmospheres.
The connector is rated ATEX II 2 GD, making it suitable for equipment used in environments where explosive gas or dust atmospheres may occur. It features a black housing and is supplied with a seal and fixing screw.

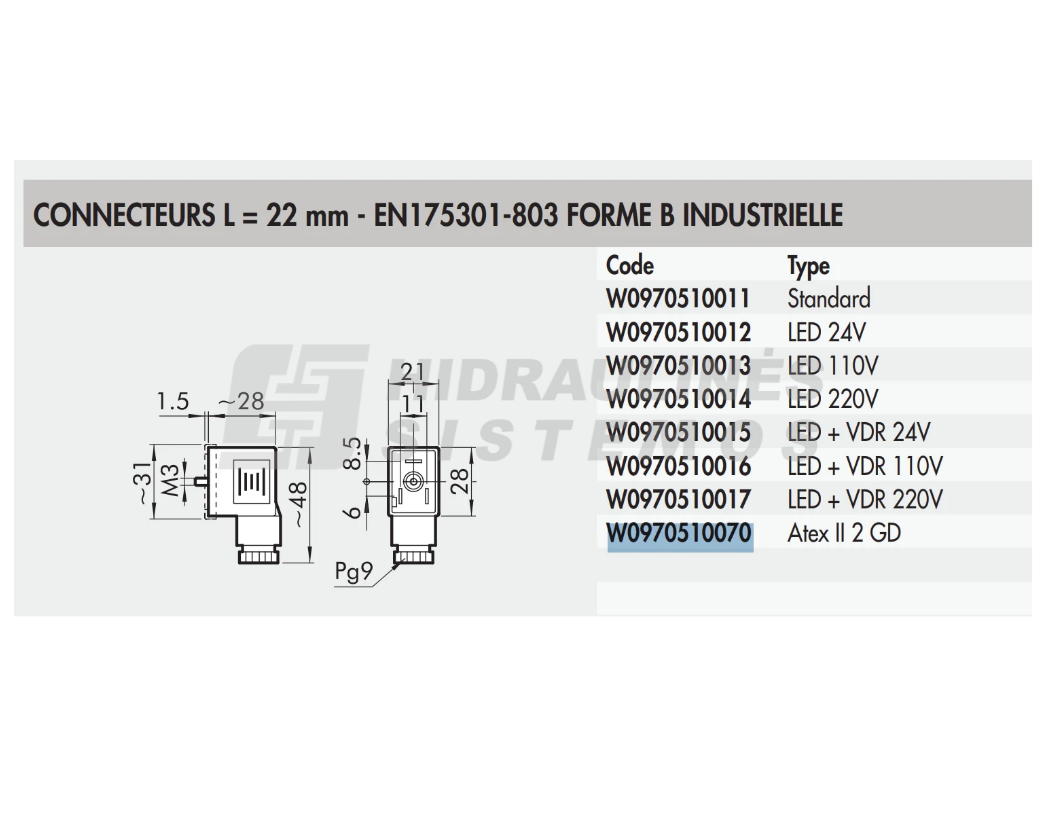

Technical Data
- Manufacturer: Metal Work
- Part number: W0970510070
- Type: Electrical coil connector
- Coil side size: 22 mm
- ATEX category: II 2 GD
- Housing colour: Black
- Supplied with: Seal and fixing screw
- EAN: 8024986842906
- Application: Electrical connection of compatible 22 mm solenoid valve coils
