PLP20.8-D0-86-S6-LEA/EA-N-I-FS
200,00 € excl. VAT
PLP208DII
Out of stock
PLP208DII
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

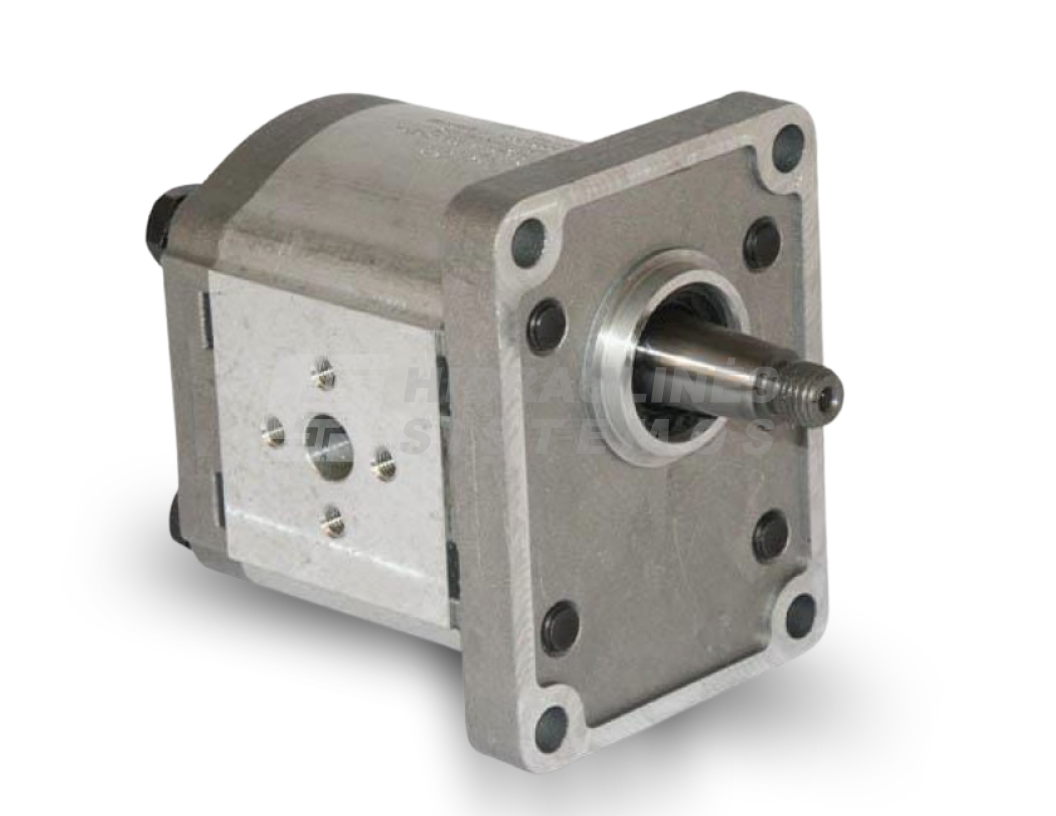

The Casappa PLP20.8-D0-86-S6-LEA/EA-N-I-FS is a Group 2 external gear hydraulic pump from the Polaris series, designed for hydraulic power transmission in mobile and industrial applications. The pump features a high-strength aluminium housing, low noise operation, high efficiency, and long service life.
This model has a displacement of approximately 8.26 cm³/rev and is designed for clockwise rotation. The Polaris series is widely used in hydraulic power units, agricultural machinery, construction equipment, municipal vehicles, and industrial hydraulic systems.
Technical data
- Manufacturer: Casappa
- Series: Polaris PLP20
- Model: PLP20.8-D0-86-S6-LEA/EA-N-I-FS
- Type: External gear pump
- Pump group: Group 2
- Displacement: 8.26 cm³/rev
- Rotation: Clockwise (CW)
- Housing: Aluminium alloy
- Continuous pressure: 210–250 bar
- Intermittent pressure: up to 240–280 bar
- Peak pressure: up to 255–300 bar
- Maximum speed: 3500 rpm
- Minimum speed: 600 rpm
- Recommended viscosity: 12–100 cSt
- Operating temperature: -25 °C to +80 °C
