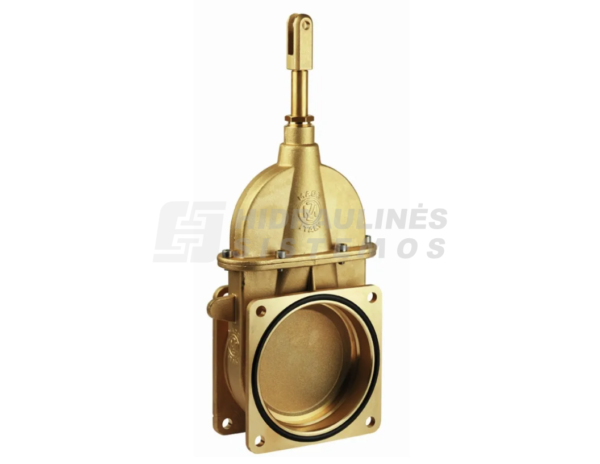

MZ Gate valve item 0074, 6″
215,00 € excl. VAT
Out of stock
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
This is a high-flow valve designed for opening or closing flow in low-pressure systems.
Technical data:
- Ø (inner diameter): 145 mm
- H (overall height): 400 mm
- h: 324 mm
- L (length): 180 mm
- L1: 107.5 mm
- l: 150 mm
- F: 90 mm
- D (mounting hole): 13 mm
- Nominal size: DN150 (6″)
- Max. working pressure: 2.5 bar
- Temperature range: -15°C to +80°C
- Connection: flange to flange
- Type: knife gate valve (wedge type)
- Weight: ~7.9 kg
