Mini powerpack 2.2kW 24V 3.1cc 10L Hyva 14553500
600,00 € excl. VAT
114553500
Out of stock
114553500
Product information
Description

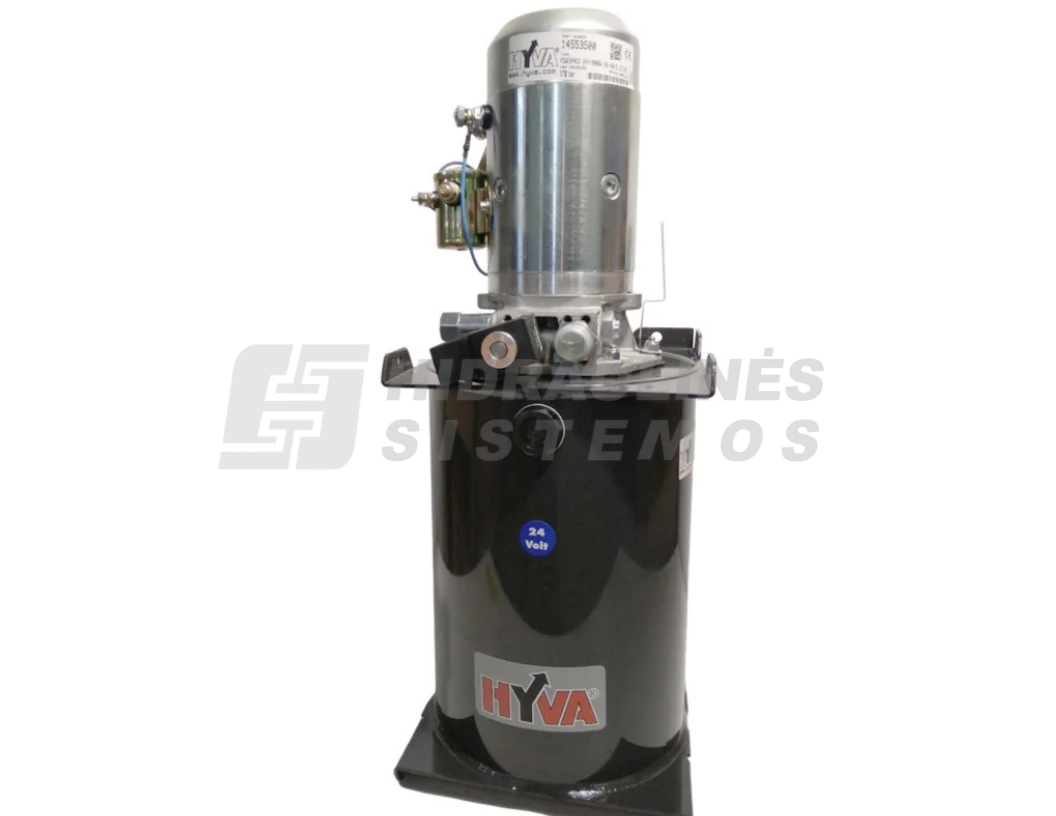

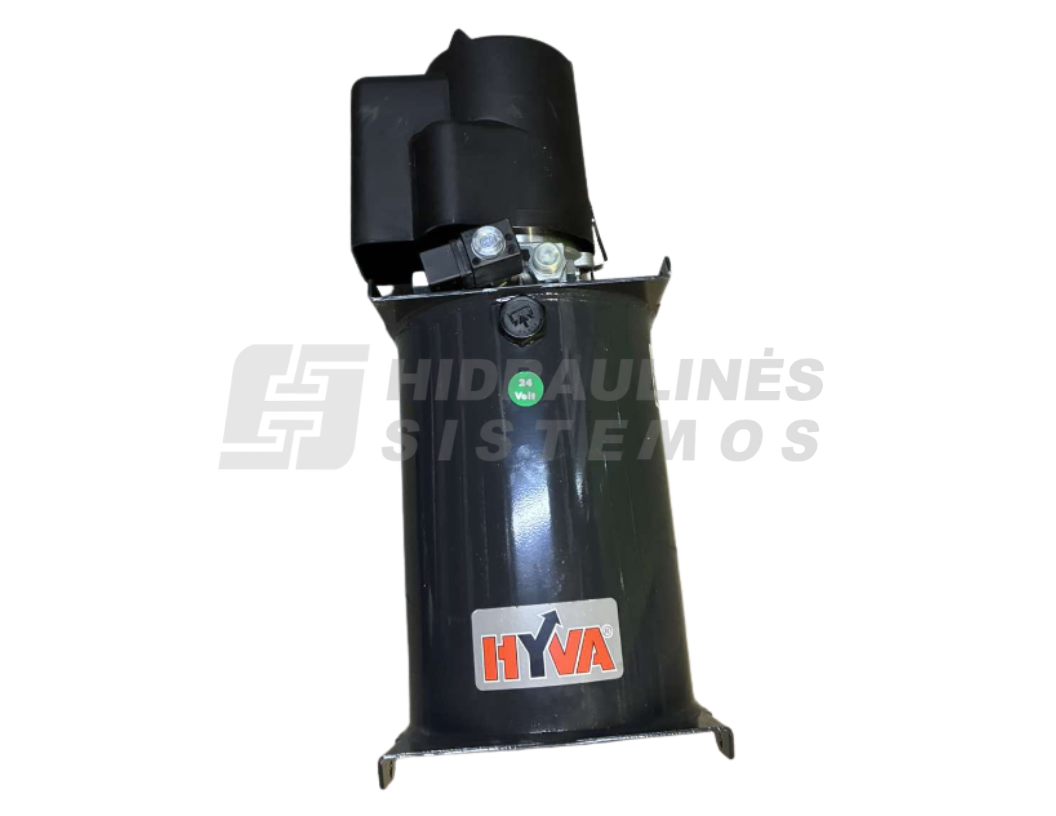

Hyva 14553500 is a compact 24 V electro-hydraulic power pack designed to supply hydraulic flow and pressure in systems powered by an electric motor. The unit combines an electric motor, hydraulic pump, oil reservoir and control valve in one compact assembly.
The power pack is designed for single-acting hydraulic systems and can be used for tipper applications with underbody cylinders as well as trailers and other mobile hydraulic equipment. Hyva recommends this type of power pack for applications where a PTO-driven hydraulic system is not used or is not practical.
The 24 V electric motor has a nominal power of 3 kW, the hydraulic pump displacement is 3.1 cm³/rev., and the steel oil reservoir has a capacity of 10 L. Maximum pressure is 170 bar, with a flow rate of 7.2 L/min at 100 bar.
Technical Data
- Manufacturer: Hyva
- Part number: 14553500
- Type: Electro-hydraulic power pack
- Operation: Single acting (SA)
- Supply voltage: 24 V DC
- Electric motor power: 3 kW
- Pump displacement: 3.1 cm³/rev.
- Oil tank capacity: 10 L
- Maximum pressure: 170 bar
- Flow at 100 bar: 7.2 L/min
- Current at maximum pressure: 165 A
- Pressure port P: 1/2″ BSP
- Return port T: G3/8″
