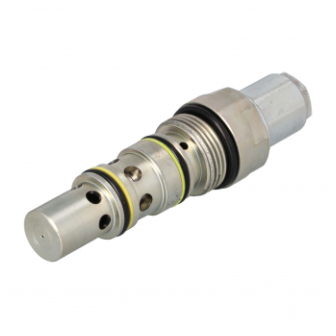

Main valve 35-350bar, FKA283 for control valve RS 210
249,75 € excl. VAT
EV2552, FKA283
Out of stock
EV2552, FKA283
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Nordhydraulic FKA283 / EV2552 is a flow control valve designed for the I02Q and I06Q Q-type inlet sections of the RS210 sectional directional control valve.
The FKA283 is part of the RS210 Q-function. Together with a calibrated PF metering orifice, it defines the regulated flow through the valve’s centre gallery. During idle operation, a small regulated flow passes through the valve while excess pump flow is routed directly to tank. When a working spool is operated, the full pump flow becomes available to the hydraulic function. This arrangement helps reduce pressure losses and heat generation.
Technical Data
- Manufacturer / brand: Nordhydraulic
- Part number: FKA283
- Alternative reference: EV2552
- Type: Flow control valve
- Valve series: RS210
- Suitable inlet sections: I02Q / I06Q
- Catalogue variants: FKA283/2, FKA283/3
- Function: Flow control in RS210 Q-type inlet section
- Used with calibrated PF metering orifice
- PF11: Ø5.4 mm – 25 l/min
- PF12: Ø5.7 mm – 28 l/min
- Works with TB12 to form the pilot-operated main relief function
