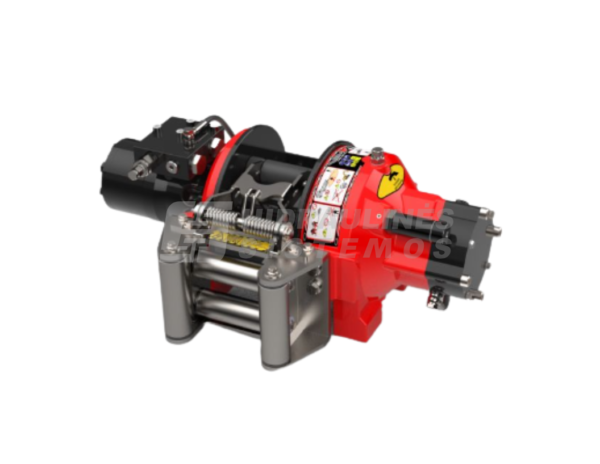

Hydraulic Winch VIME EPH 6700FN 6.7t 165 Bar 60 Lt./Min

Description

VIME EPH series hydraulic winches are designed for professional use in transport vehicles, trailers, self-recovery systems and various industrial equipment. The winches feature a reliable construction, high efficiency and long service life even under demanding operating conditions.

The winch is equipped with a hardened steel planetary gear system, ensuring efficient torque transmission and smooth rope payout and retrieval. The planetary gear design allows high pulling force within a compact construction, making the winch reliable and suitable for intensive use.

Reliable load holding is ensured by a multi-disc hydraulic braking system, allowing safe control of the pulling process. The gear train and braking system are equipped with an oil lubrication system, which reduces wear and noise while extending the service life of the components.

Thanks to its versatile design, the winch can be mounted either with foot or side mounting, allowing easy integration into different hydraulic systems. Some models can also be equipped with a manual or pneumatic drum clutch, allowing the drum to be disengaged from the gearbox for fast rope payout (freespool function).

VIME hydraulic winches are widely used on recovery vehicles, car transport platforms, trailers, self-recovery systems and industrial equipment.

Type: hydraulic planetary winch

Model: VIME EPH 6700FN

Pulling capacity (1st layer): 6,700 kg

Working pressure: up to 165 bar

Max oil flow: up to 60 l/min

Wire rope diameter: 12 mm

Gear ratio: 5.3 : 1

Max rope speed (1st layer): approx. 9.2 m/min

Max rope speed (top layer): approx. 16.5 m/min

Max rope capacity (standard drum): approx. 39 m

Weight without rope: approx. 57.9 kg

Application: transport vehicles, trailers, self-recovery systems, industrial equipment

Standard: EN 14492-1

The VIME EPH 6700FN winch is available with different drum length options:

EPH 6700FN – standard drum

Drum length: 252 mm (9.9 in)

Provides greater rope capacity and longer pulling distance.

EPH/C 6700FN – short drum

Max rope capacity: approx. 15 m (12 mm rope)

More compact design, suitable for installations with limited mounting space.

Product images and specifications are provided by the manufacturer.
