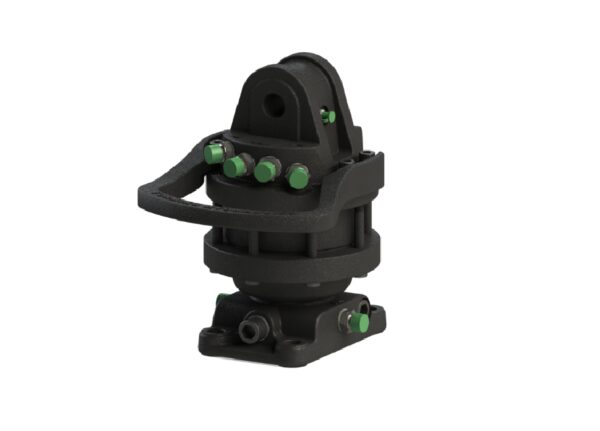

Hydraulic rotator FHR 4.500RF
Hydraulic rotator FHR 4.500RF
Add to wishlist

Hydraulic rotator FHR 4.500RF

Full product specification

480,00 € excl. VAT

Hydraulic rotator FHR 4.500RF

Out of stock

Hydraulic rotator FHR 4.500RF

Enter your email address and we will notify you as soon as the item is available.
SKU: R45RF Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

Hydraulic rotator designed for grapples, loaders and material handling equipment, enabling precise 360° rotation of loads. Commonly used in forestry, agriculture, construction and general cargo handling.

Model FHR 4.5RF features a compact design for medium-duty applications. It is equipped with a lower flange mounting for direct attachment to tools and an upper eye-type connection (73/25) for linkage connection.

The rotator is based on a vane type hydraulic motor, delivering smooth rotation and torque up to 1200 Nm.

Key components are made of forged steel, ensuring resistance to shock loads and deformation, making it suitable for demanding environments.

Technical data

Type: hydraulic rotator

Model: FHR 4.5RF

Upper connection: eye type, 73 mm width, Ø25 mm pin

Lower connection: flange (rectangular)

Max load: 45 kN

Static load: 22.5 kN

Torque: up to 1200 Nm

Max working pressure: up to 250–300 bar

Recommended flow: approx. 20 l/min

Ports: 3/8″ BSP

Weight: 28 kg

Application:

forestry, agriculture, construction, material handling

Compatible with: FHL 01, FHL 01B, FHL 05, FHL 05B, FHL 04 (73/25) series links.
