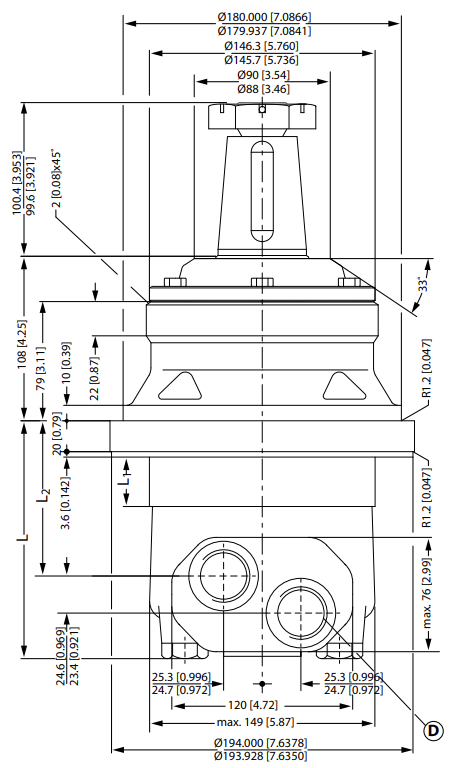

Hydraulic motor MVW 800 K tapered 1:10, 60mm shaft 151B3124

Description

Specification

Model code: OMV-0800-B-NN-W53-AE-1E-F22-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN

Motor series: OMV Series

Motor size: 800

Geometric displacement: 801.8 cm³/rev

Motor type: wheel

Motor function: standard

Valve system: disc valve with valve drive

Orbital gearwheel set type: Geroler

Orbital gearwheel set: standard

Mounting flange type: 4-bolt – wheel

Mounting flange dimensions (front): pilot dia. 180.0 × 10.6 mm, bolt circle dia. 224.0 mm, hole dia. 18.0 mm

Mounting flange dimensions (rear): pilot dia. 194.0 × 3.4 mm, bolt circle dia. 224.0 mm, hole dia. 18.0 mm

Shaft type: tapered

Shaft dimensions: dia. 60 mm, 1:10 taper, 3 × M42 threads in shaft end

Shaft key: rectangular key, B16 × 10 × 32 mm, DIN 6885

Shaft seal: NBR – standard

Main port thread type: BSP

Main port style: side ported – staggered

Main port dimensions: G 1, 4 × M12 block mounting threads

Drain port dimension: G 1/4

Brake release port: n/a

Painted: no

Paint information: n/a

Special features – hardware: standard

Special features – assembly: standard

Dust seal: standard

Seal kit: 151B0129

Front bearing type: tapered roller bearing

Rear bearing type: tapered roller bearing

Check valve function: yes

Hydraulic valve function: none

Sensor: none
