Hydraulic motor MV 630 K tapered 1:10, 60mm shaft, KHDPC/4 M+S
Hydraulic motor MV 630 K tapered 1:10, 60mm shaft, KHDPC/4 M+S
Hydraulic motor MV 630 K tapered 1:10, 60mm shaft, KHDPC/4 M+S
Hydraulic motor MV 630 K tapered 1:10, 60mm shaft, KHDPC/4 M+S
Hydraulic motor MV 630 K tapered 1:10, 60mm shaft, KHDPC/4 M+S
Hydraulic motor MV 630 K tapered 1:10, 60mm shaft, KHDPC/4 M+S
Hydraulic motor MV 630 K tapered 1:10, 60mm shaft, KHDPC/4 M+S
Hydraulic motor MV 630 K tapered 1:10, 60mm shaft, KHDPC/4 M+S
Hydraulic motor MV 630 K tapered 1:10, 60mm shaft, KHDPC/4 M+S
Hydraulic motor MV 630 K tapered 1:10, 60mm shaft, KHDPC/4 M+S
Hydraulic motor MV 630 K tapered 1:10, 60mm shaft, KHDPC/4 M+S
Hydraulic motor MV 630 K tapered 1:10, 60mm shaft, KHDPC/4 M+S
Add to wishlist

Hydraulic motor MV 630 K tapered 1:10, 60mm shaft, KHDPC/4 M+S

Full product specification

1200,00 € excl. VAT

MV 630 KHDPC/4 M+S HMV630K OMV630K MV630K

Out of stock

MV 630 KHDPC/4 M+S HMV630K OMV630K MV630K

Enter your email address and we will notify you as soon as the item is available.
SKU: 4691052 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

Specification

Motor size: 630

Geometric displacement: 629.1 cm³/rev

Maximum speed (continuous): 315 rpm

Maximum speed (intermittent): 380 rpm

Maximum torque (continuous): 1660 Nm

Maximum torque (intermittent): 1940 Nm

Maximum output power (continuous): 48.0 kW

Maximum output power (intermittent): 56.0 kW

Maximum pressure drop (continuous): 180 bar

Maximum pressure drop (intermittent): 210 bar

Maximum pressure drop (peak): 240 bar

Maximum oil flow (continuous): 200 l/min

Maximum oil flow (intermittent): 240 l/min

Maximum starting pressure with unloaded shaft: 8 bar

Minimum starting torque at max. pressure drop (continuous): 1330 Nm

Minimum starting torque at max. pressure drop (intermittent): 1550 Nm

Additional information

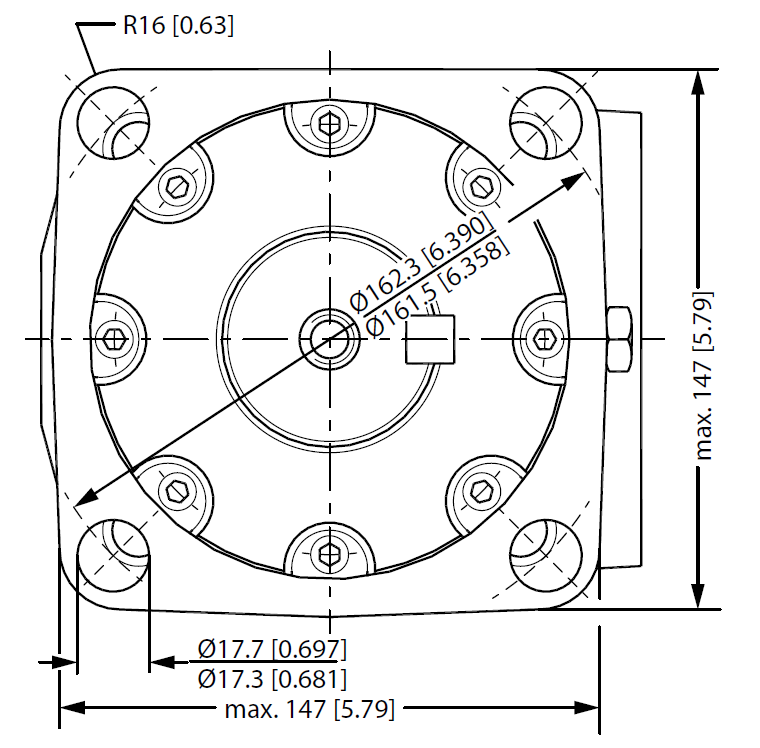

Flange

127mm, 162mm, 4 bolts
Manufacturer

M+S Hydraulics
Connections

BSP 1”
Connection side/rear

Side
Type

Orbital (Gerotor)
Volume

630

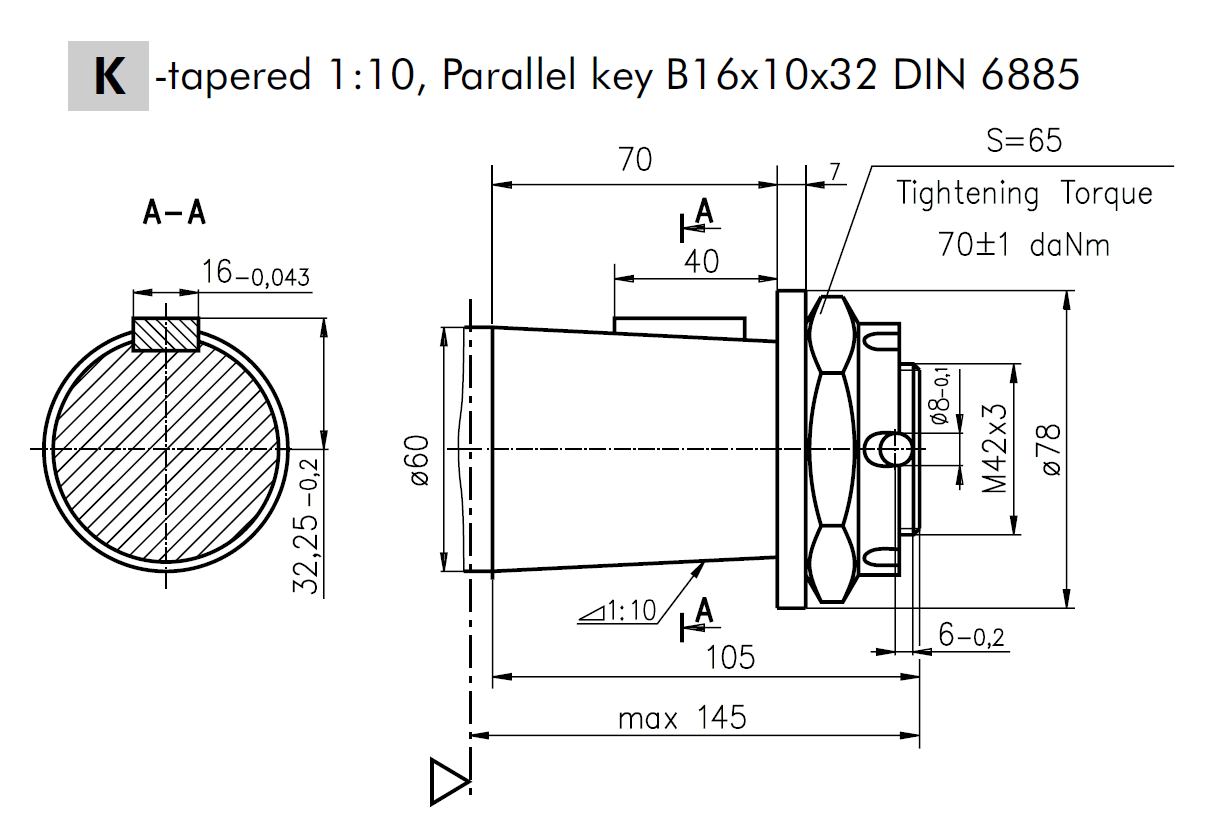

Shaft

Tapered 1:10, 60mm
