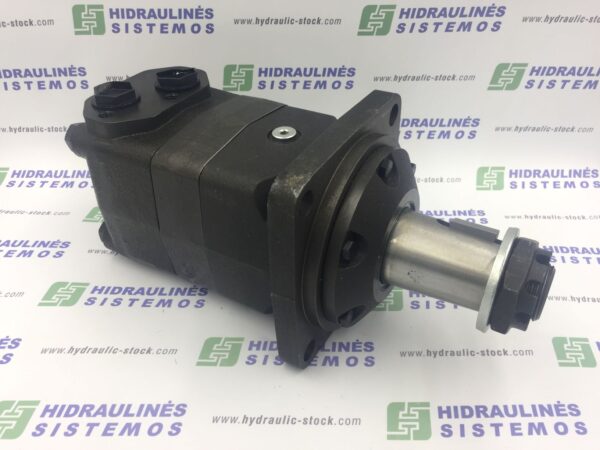

Hydraulic motor MV 630 C shaft 50 ALSG8-630-KW4-C50-02
475,00 € excl. VAT
21010111 ALSG8-630-KW4-C50-02
Out of stock
21010111 ALSG8-630-KW4-C50-02
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.

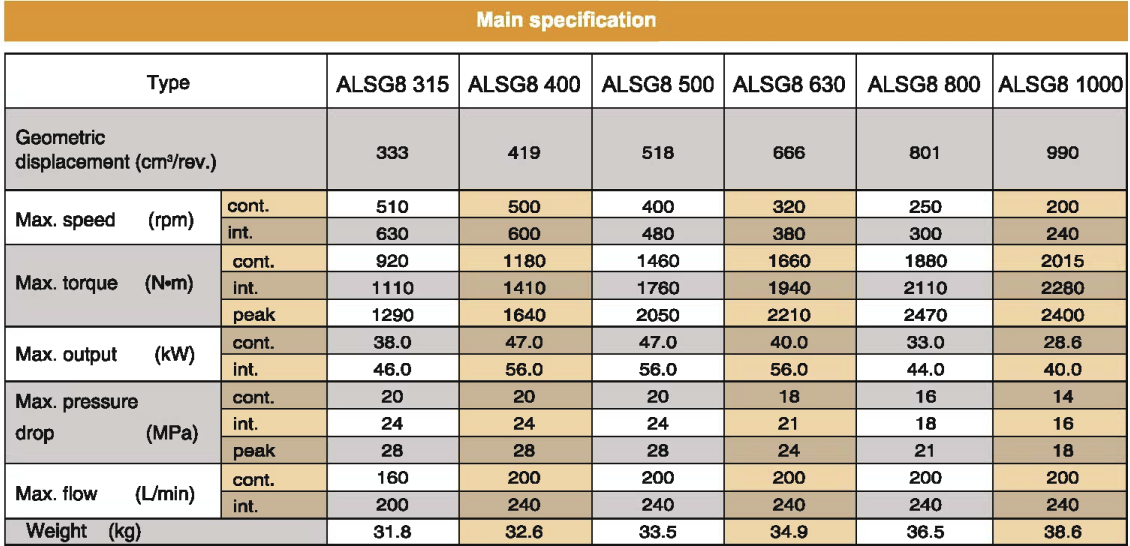

Product information
Description
Specification
Type: ALSG8 630
Geometric displacement: 666 cm³/rev
Maximum speed (continuous): 320 rpm
Maximum speed (intermittent): 380 rpm
Maximum torque (continuous): 1660 Nm
Maximum torque (intermittent): 1940 Nm
Maximum torque (peak): 2210 Nm
Maximum output power (continuous): 40.0 kW
Maximum output power (intermittent): 56.0 kW
Maximum pressure drop (continuous): 180 bar
Maximum pressure drop (intermittent): 210 bar
Maximum pressure drop (peak): 240 bar
Maximum flow (continuous): 200 l/min
Maximum flow (intermittent): 240 l/min
Weight: 34.9 kg
Additional information
| Flange | 160mm, 200mm, 4 bolts |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 1” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 630 |
| Shaft | 50mm |
