Hydraulic motor MV 500 C 50mm shaft
Hydraulic motor MV 500 C 50mm shaft
Hydraulic motor MV 500 C 50mm shaft
Hydraulic motor MV 500 C 50mm shaft
Hydraulic motor MV 500 C 50mm shaft
Hydraulic motor MV 500 C 50mm shaft
Hydraulic motor MV 500 C 50mm shaft
Hydraulic motor MV 500 C 50mm shaft
Hydraulic motor MV 500 C 50mm shaft
Hydraulic motor MV 500 C 50mm shaft
Hydraulic motor MV 500 C 50mm shaft
Hydraulic motor MV 500 C 50mm shaft
Add to wishlist

Hydraulic motor MV 500 C 50mm shaft

Full product specification

490,00 € excl. VAT

WMV-500 omv500 mv500

Out of stock

WMV-500 omv500 mv500

Enter your email address and we will notify you as soon as the item is available.
SKU: HMV500 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

Specification

Motor size: 500

Geometric displacement: 499.6 cm³/rev

Maximum speed (continuous): 400 rpm

Maximum speed (intermittent): 480 rpm

Maximum torque (continuous): 1460 Nm

Maximum torque (intermittent): 1760 Nm

Maximum output power (continuous): 53.5 kW

Maximum output power (intermittent): 64.0 kW

Maximum pressure drop (continuous): 200 bar

Maximum pressure drop (intermittent): 240 bar

Maximum pressure drop (peak): 280 bar

Maximum oil flow (continuous): 200 l/min

Maximum oil flow (intermittent): 240 l/min

Maximum starting pressure with unloaded shaft: 8 bar

Minimum starting torque at max. pressure drop (continuous): 1130 Nm

Minimum starting torque at max. pressure drop (intermittent): 1360 Nm

Additional information

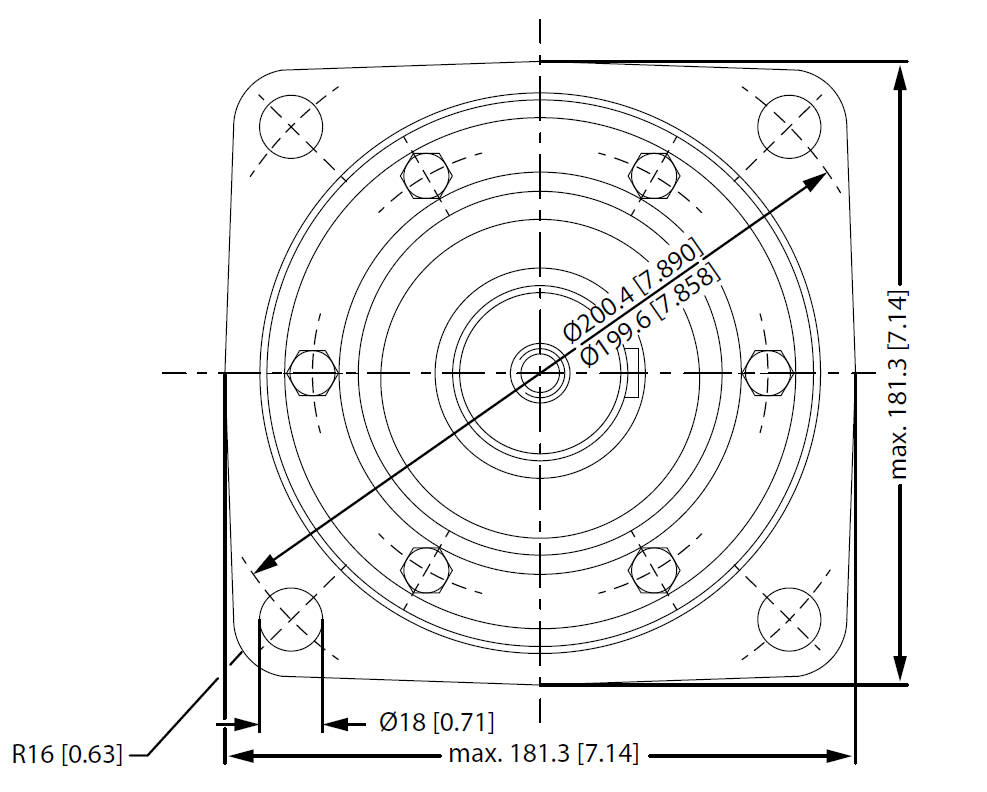

Flange

160mm, 200mm, 4 bolts
Connections

BSP 1”
Connection side/rear

Side
Type

Orbital (Gerotor)
Volume

500
Shaft

50mm
