Hydraulic motor MV 400 C 50mm shaft
Original price was: 590,00 €.550,00 €Current price is: 550,00 €. excl. VAT
OMV400 MV400 SMV400A440YGP SMV-400-4-A-D-GP
Out of stock
OMV400 MV400 SMV400A440YGP SMV-400-4-A-D-GP
Product information
Description
Specification
Motor size: 400
Geometric displacement: 400.9 cm³/rev
Maximum speed (continuous): 500 rpm
Maximum speed (intermittent): 600 rpm
Maximum torque (continuous): 1180 Nm
Maximum torque (intermittent): 1410 Nm
Maximum output power (continuous): 53.5 kW
Maximum output power (intermittent): 64.0 kW
Maximum pressure drop (continuous): 200 bar
Maximum pressure drop (intermittent): 240 bar
Maximum pressure drop (peak): 280 bar
Maximum oil flow (continuous): 200 l/min
Maximum oil flow (intermittent): 240 l/min
Maximum starting pressure with unloaded shaft: 8 bar
Minimum starting torque at max. pressure drop (continuous): 910 Nm
Minimum starting torque at max. pressure drop (intermittent): 1090 Nm
Additional information

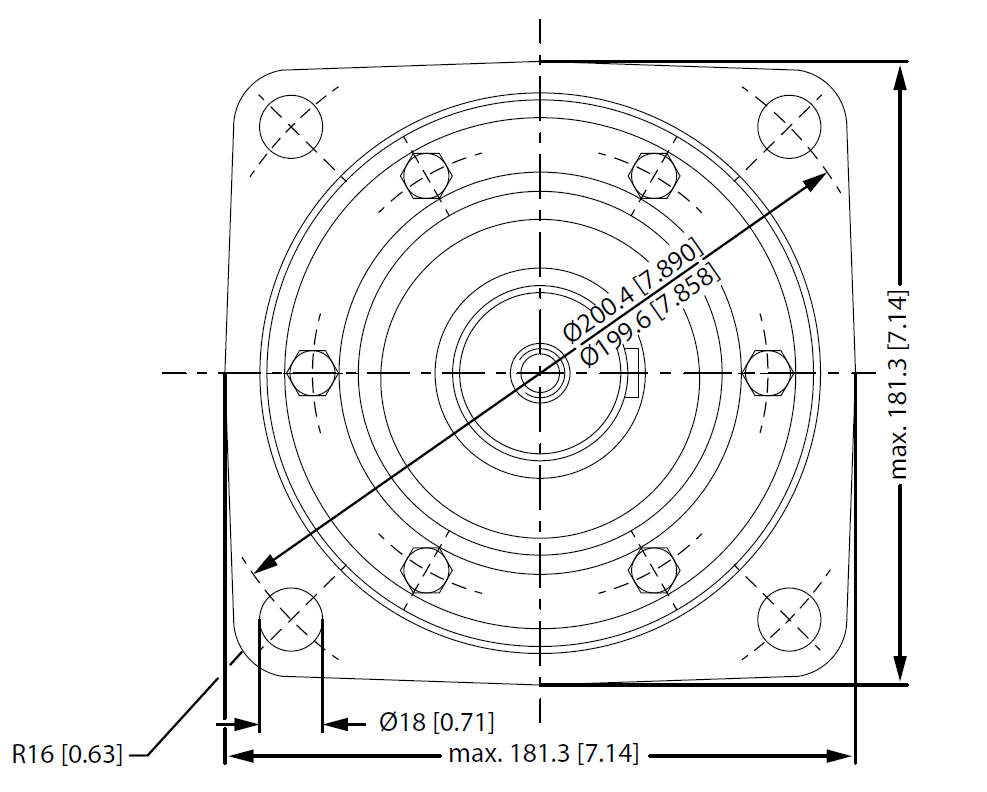

| Flange | 160mm, 200mm, 4 bolts |
|---|---|
| Manufacturer | gopart |
| Connections | BSP 1” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 419 |
| Shaft | 50mm |
