Hydraulic motor MTW 500 K tapered 1:10 shaft

Full product specification

1303,29 € excl. VAT

Out of stock

Enter your email address and we will notify you as soon as the item is available.
SKU: 455419 Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

Specification

Series: OMTW HD

Drain port style: standard – bearing housing

Dust seal: standard

Front bearing: tapered roller bearing

Mounting flange: 4-bolt – wheel, special

Packaging: single pack

Painted: black

Port dimensions: G 1/4, G 3/4

Port style: side ported – offset manifold (4 × M10)

Displacement: 500 cm³/rev

Seal kit: 151B0161

Series (manufacturer): O-Series

Shaft key: B12 × 8 × 28 mm

Shaft seal: NBR – standard

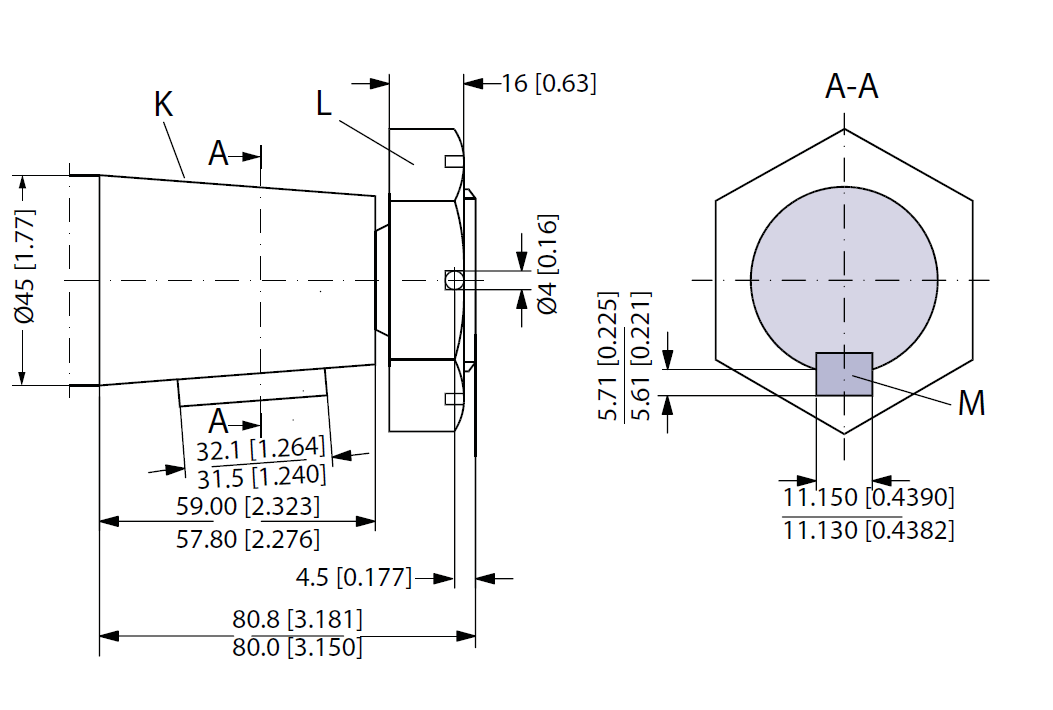

Shaft dimensions: dia. 45 mm, M30 × 2 thread

Shaft style: tapered – cone 1:10

Special external features: valve housing – turned

Design: 2

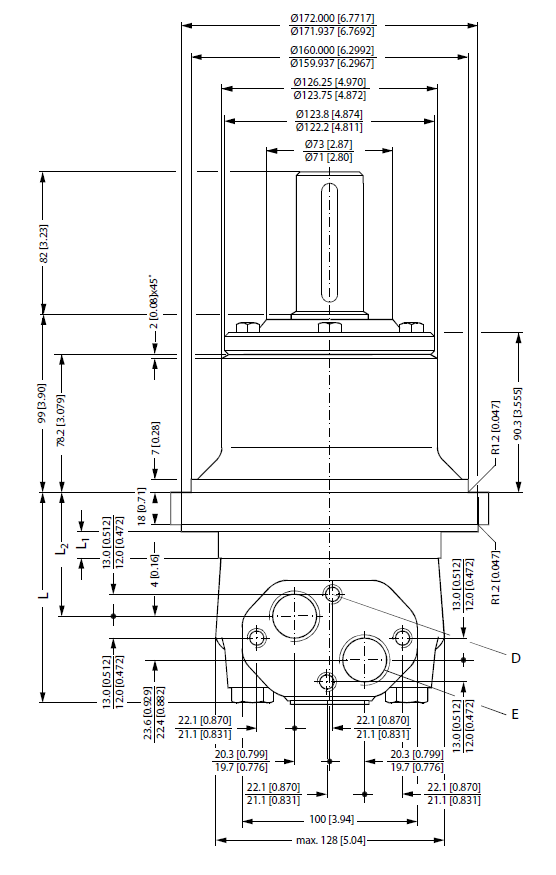

Mounting thread / pilot dimensions: pilot dia. 160 × 7 mm / 172 × 3.5 mm, bolt circle dia. 200 mm, hole dia. 18 mm

Type code: none

Additional information

Flange

For wheels 160mm, 200mm, 4 bolts
Connections

BSP 3/4”
Connection side/rear

Side
Type

Orbital (Gerotor)
Volume

500
Shaft

Tapered 1:10,
