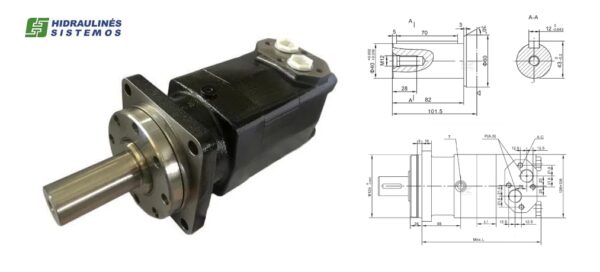

Hydraulic motor MT630 C 40mm shaft
600,00 € excl. VAT
EPMT630 SMT630A440YGP
Out of stock
EPMT630 SMT630A440YGP
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

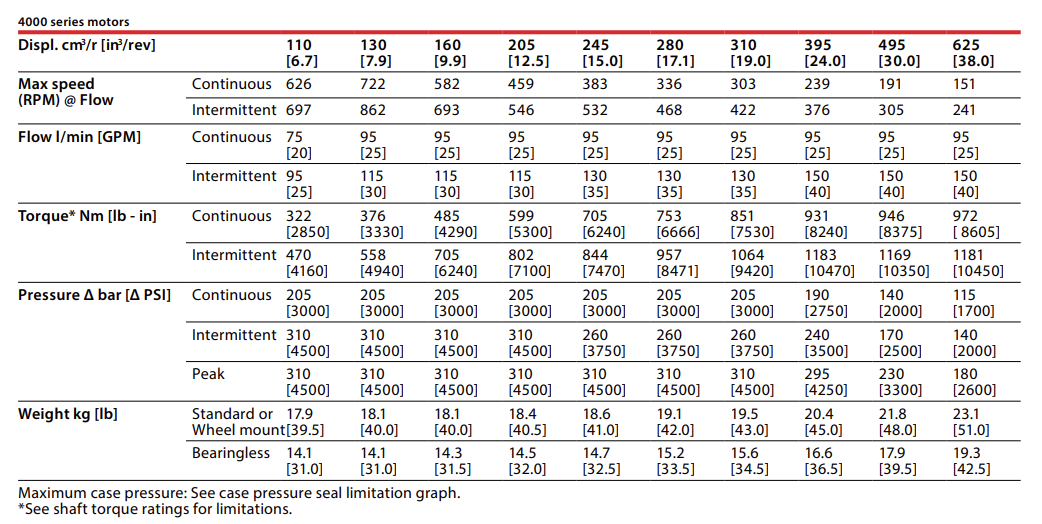

Specification
Displacement: 625 cm³/rev
Max speed @ flow (continuous): 151 rpm
Max speed @ flow (intermittent): 241 rpm
Flow (continuous): 95 l/min
Flow (intermittent): 150 l/min
Torque (continuous): 972 Nm
Torque (intermittent): 1181 Nm
Pressure Δ (continuous): 115 bar
Pressure Δ (intermittent): 140 bar
Pressure Δ (peak): 180 bar
Weight (standard or wheel mount): 23.1 kg
Weight (bearingless): 19.3 kg
Additional information

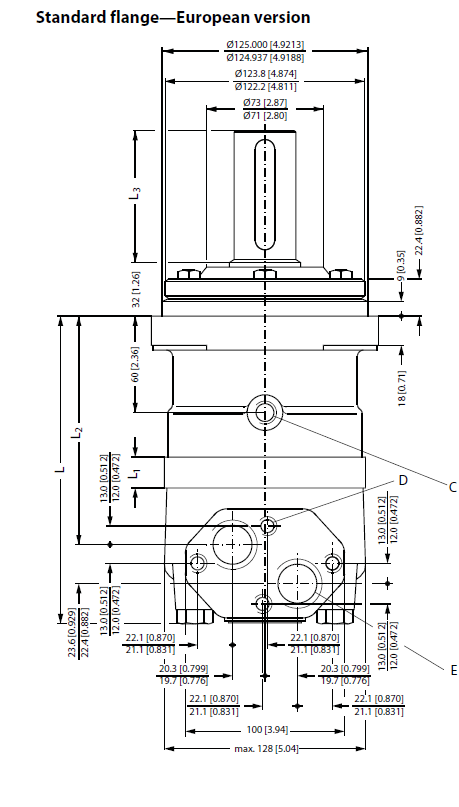

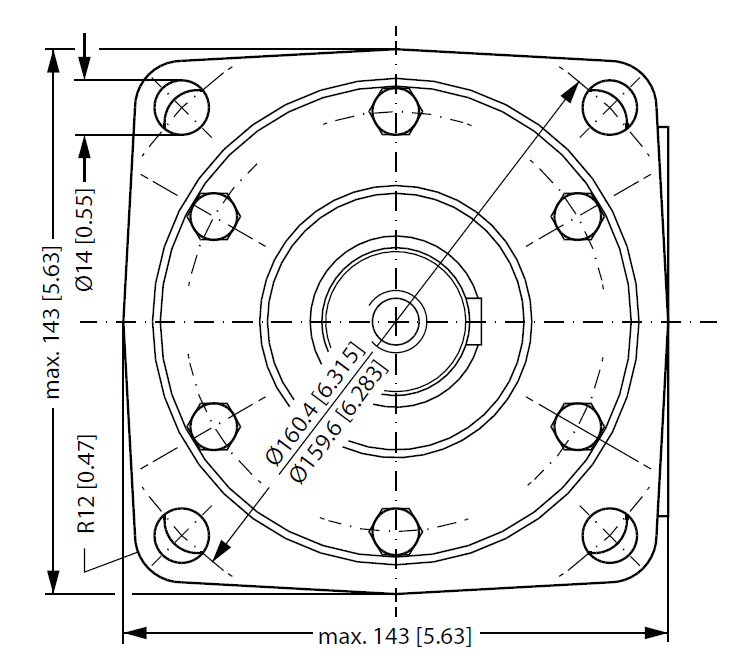

| Flange | 125mm, 160mm, 4 bolts |
|---|---|
| Manufacturer | gopart |
| Connections | BSP 3/4” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 630 |

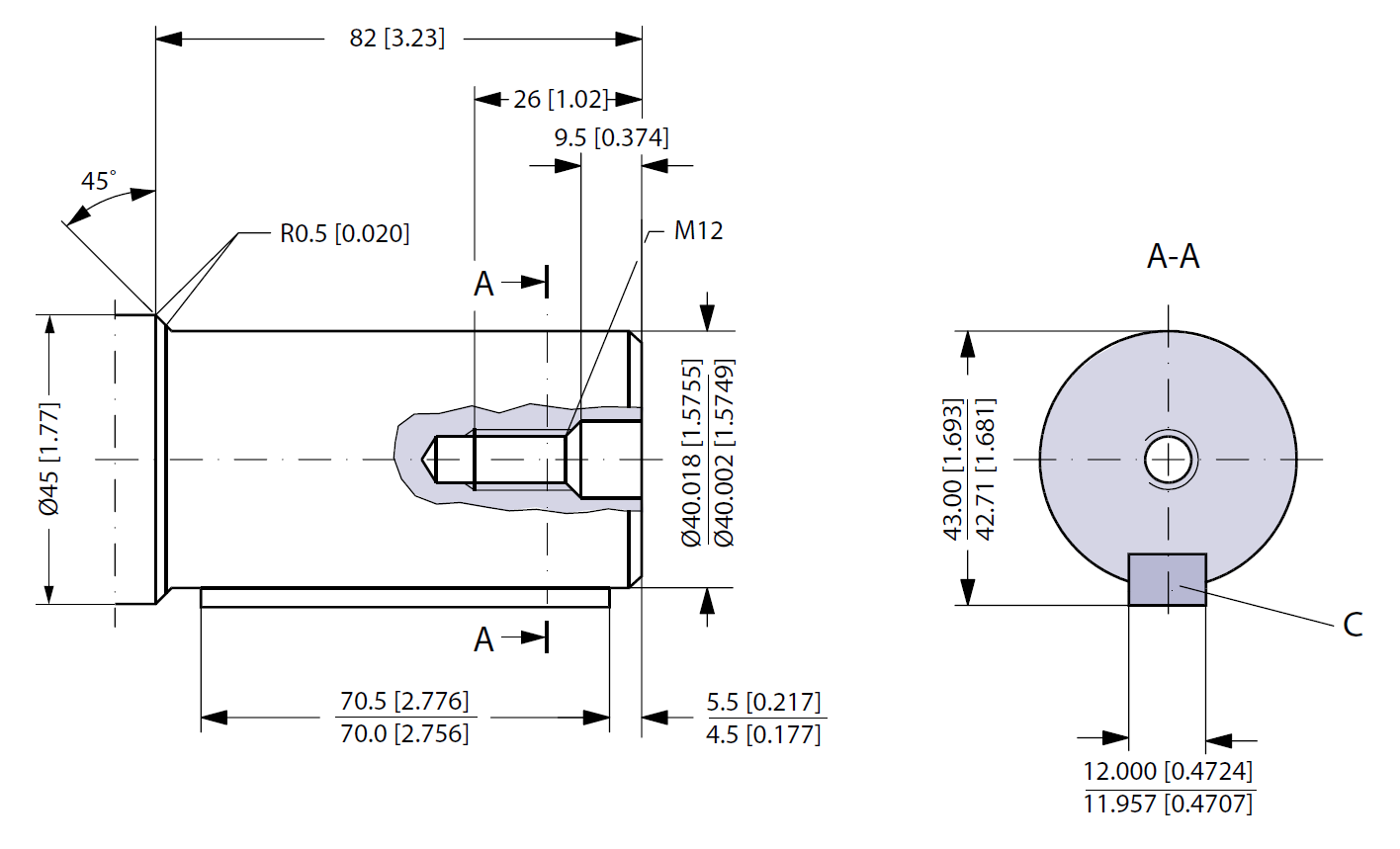

| Shaft | 40mm |
