Hydraulic motor MT400 SH 17-tooth 38.1mm-1 1/2′ shaft
600,00 € excl. VAT
EPMT400SH
Out of stock
EPMT400SH
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification
-
Displacement: 410.9 cm³/rev
-
Side ports: 2 × G 3/4″ BSPP
-

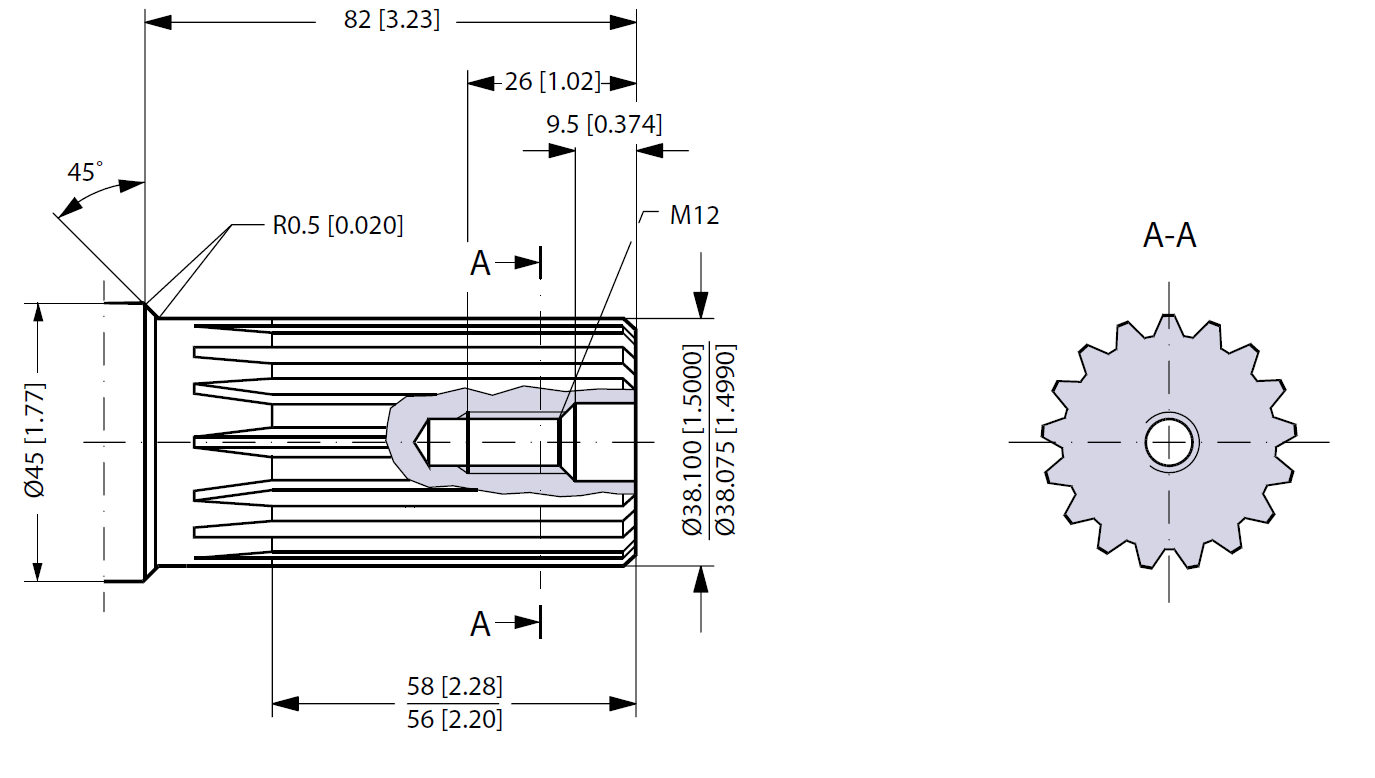

Shaft: splined, Ø 38.1 mm (1½ inch), 17 teeth
-

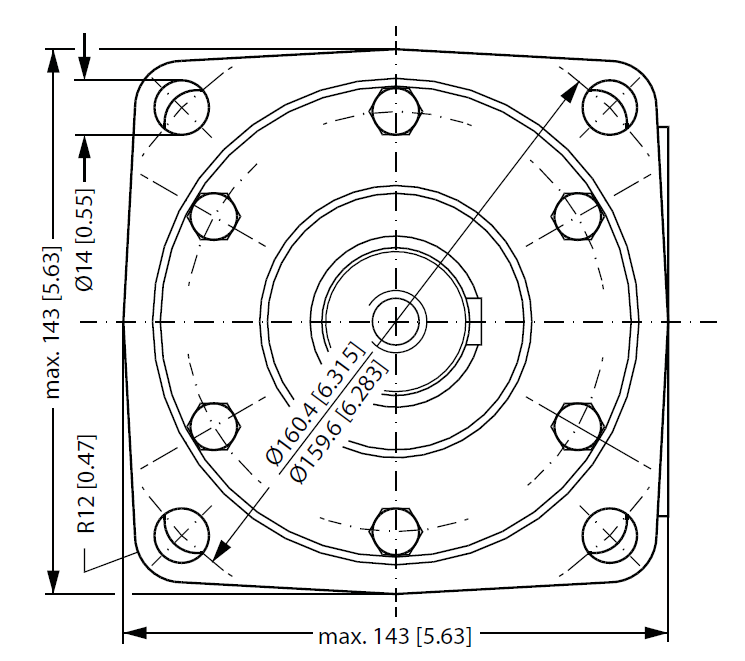

Mounting: square flange, 4 holes (160 mm bolt spacing)

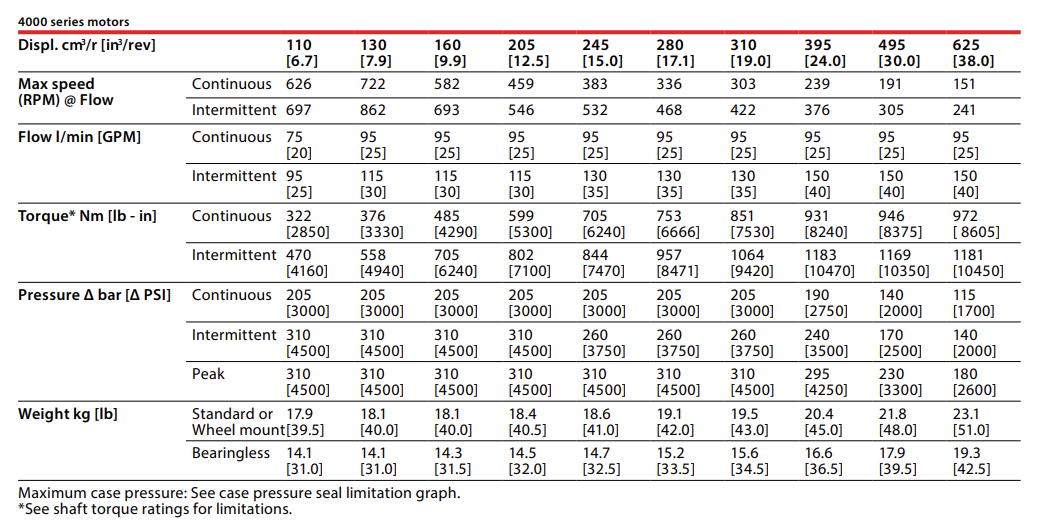

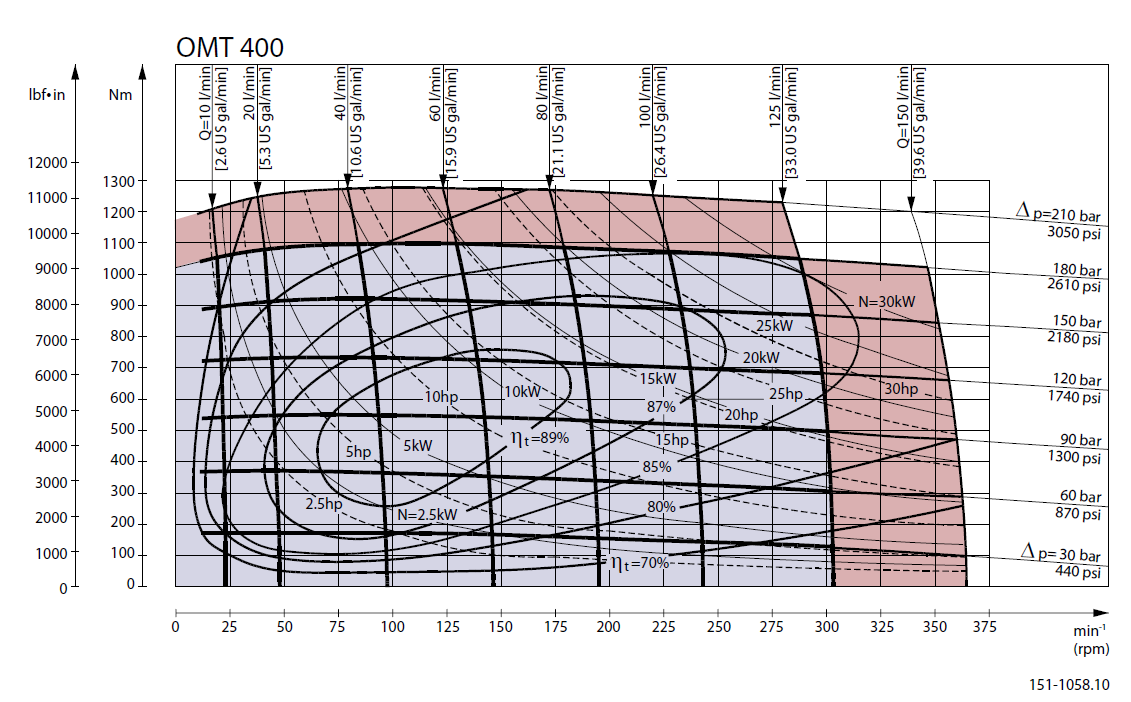

Technical data (for continuous use)
-
Max. speed: 304 rev/min
-
Max. torque: 1080 Nm
-
Max. output power: 30.0 kW
-
Max. oil flow: 125 l/min
-
Max. inlet pressure: 210 bar
-
Minimum speed: 6 rev/min
-
Max. return pressure without drain line, or max. pressure in drain line: 75 bar
Additional information
| Flange | 125mm, 160mm, 4 bolts |
|---|---|
| Connections | BSP 3/4” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 410 |
| Shaft | 17 teeth, 38.10mm |
