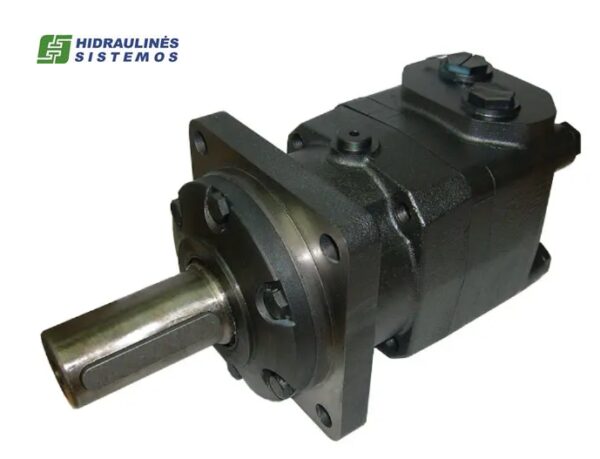

Hydraulic motor MT400 C 40mm shaft
600,00 € excl. VAT
EPMT400
Out of stock
EPMT400
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification

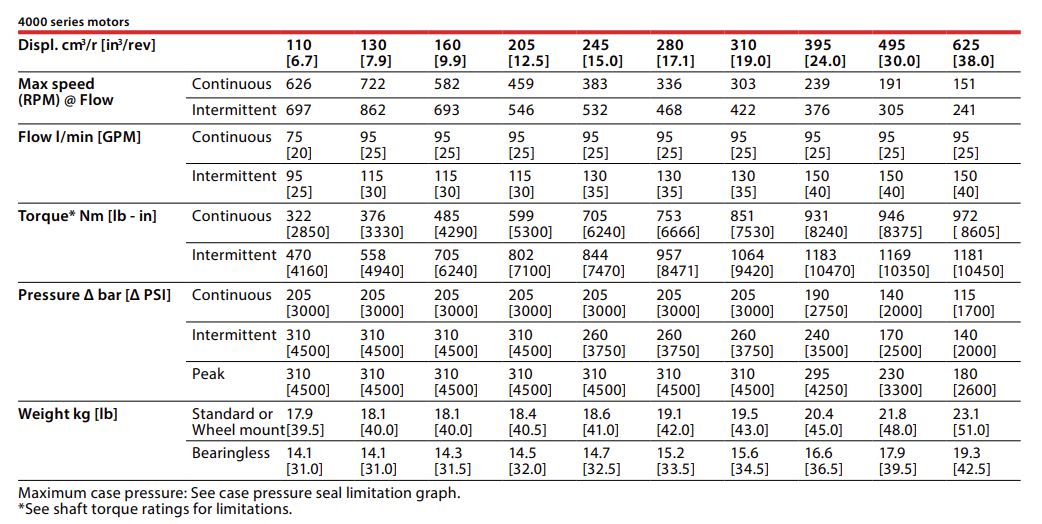

(4000 Series orbital hydraulic motor – 395 cm³/rev)
Displacement:
395 cm³/rev
Maximum speed (rpm) @ flow:
-
Continuous: 239 rpm
-
Intermittent: 376 rpm
Flow:
-
Continuous: 95 l/min
-
Intermittent: 150 l/min
Torque:
-
Continuous: 931 Nm
-
Intermittent: 1183 Nm
Pressure drop (Δp):
-
Continuous: 190 bar
-
Intermittent: 240 bar
-
Peak: 295 bar
Weight:
-
Standard or wheel: 20.4 kg
-
Bearingless: 16.6 kg
Additional information

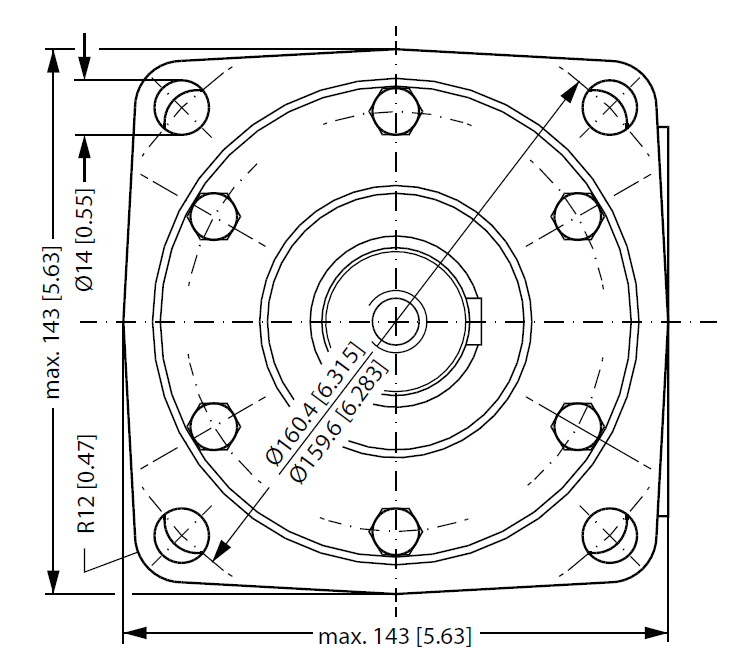

| Flange | 125mm, 160mm, 4 bolts |
|---|---|
| Connections | BSP 3/4” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 400 |
| Shaft | 40mm |
