Hydraulic motor MT160 tapered 1:10, CON GSP 151B3012 Danfoss

Description

Specification

Model code: OMT-0160-A-NN-G21-AD-1D-F18-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN

Motor series: OMT Series

Valve system: Disc valve with valve drive

Orbital gearwheel set type: Geroler

Motor size: 160

Geometric displacement: 161.1 cm³/rev $9.83 in³/rev$

Motor type: Standard

Motor function: Standard

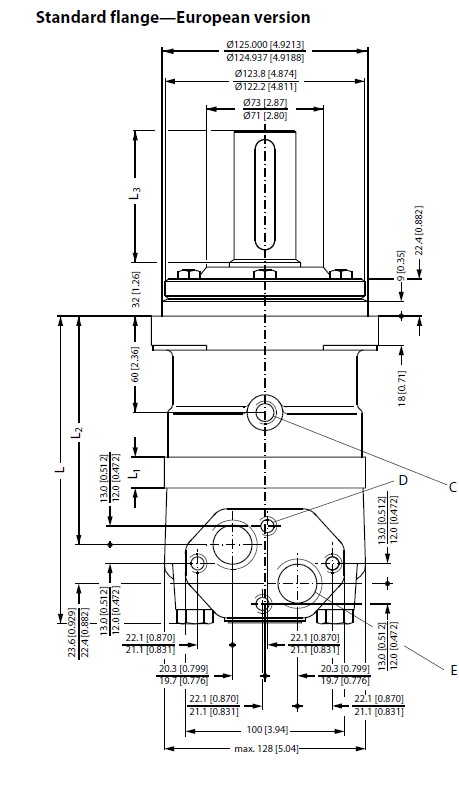

Mounting flange type: 4 Bolt – Square

Mounting flange dimensions:

Pilot Ø 125.0 × 11.0 mm, bolt circle Ø 160.0 mm, hole Ø 14.0 mm

$4.92 × 0.43, 6.30, 0.55 in$

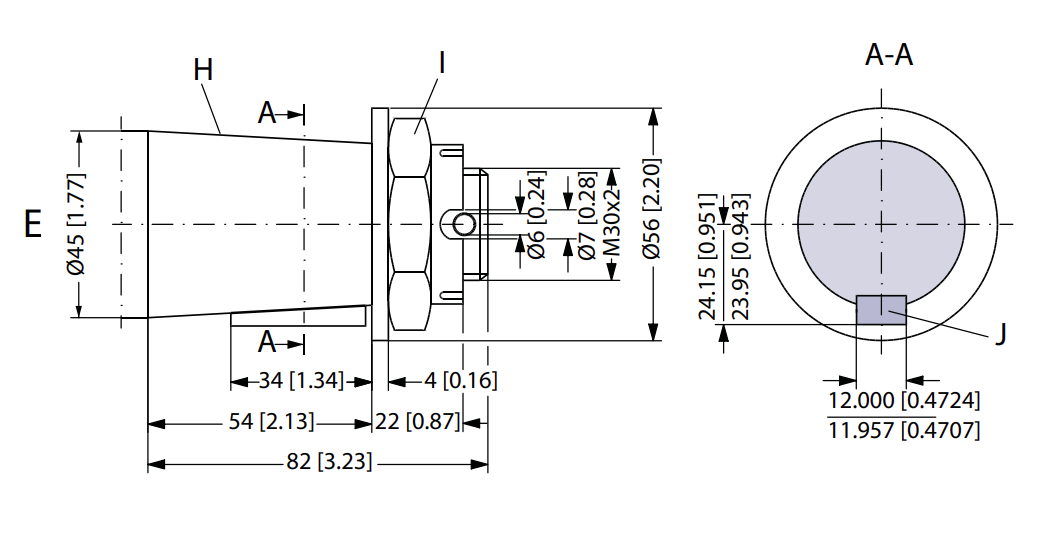

Shaft type: Tapered

Shaft dimensions: Ø 45 mm, taper 1:10, 2 × M30 threads in shaft end

Shaft key: Rectangular, B12 × 8 × 28 mm, DIN 6885

Main port thread type: BSP

Main port style: Side port – staggered

Main port dimension: G 3/4, 4 × M10 block mounting threads

Drain port dimension: G 1/4

Brake release port: n/a

Painted: No

Paint information: n/a

Special hardware features: Standard

Special assembly features: Standard

Dust seal: Standard

Shaft seal: NBR – Standard

Seal kit: 151B0113

Front bearing: Tapered roller bearing

Rear bearing: Tapered roller bearing

Orbital gearwheel set: Standard

Check valve function: Yes

Hydraulic valve function: None

Sensor: None

Packaging: Single pack

Name tag: Danfoss

Design code: 2

Delete model code: Yes
