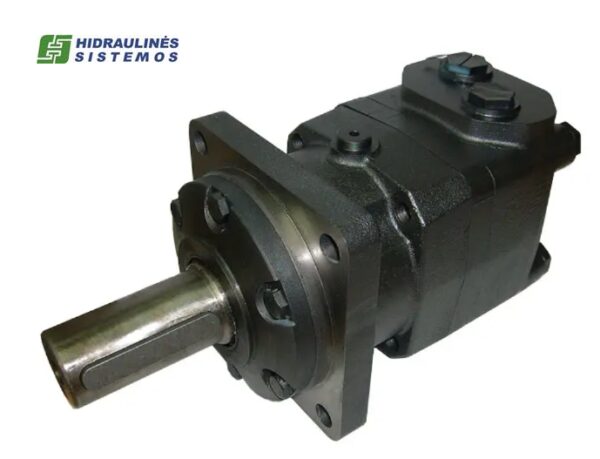

Hydraulic motor MT 315 C 40mm shaft

Description

Specification

Model code: OMT-0315-A-NN-G21-AD-1D-A31-A-A-1B-1-N-NN-NNNNN-NN-NN-NN-SP-NNN

Motor series: OMT Series

Valve system: Disc valve with valve drive

Orbital gearwheel set type: Geroler

Motor size: 315

Geometric displacement: 326.3 cm³/rev (19.91 in³/rev)

Motor type: Standard

Motor function: Standard

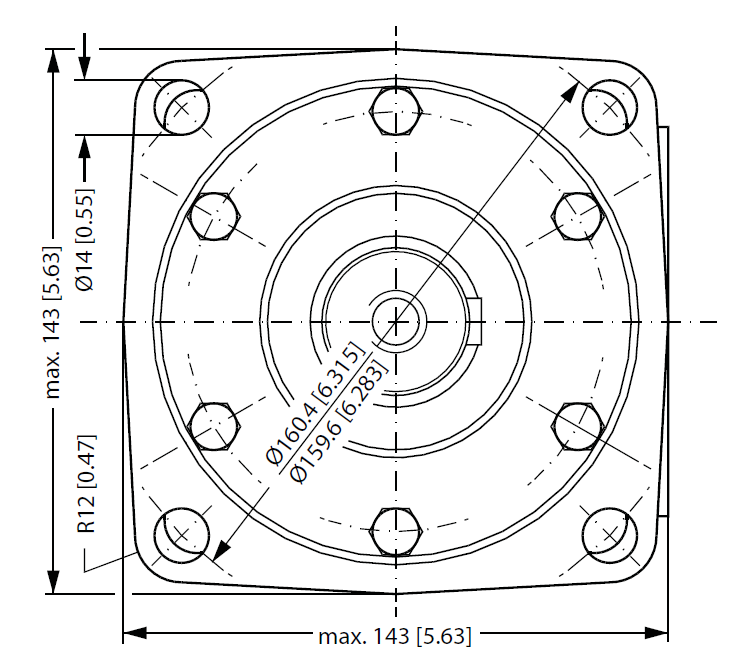

Mounting flange type: 4-bolt – square

Mounting flange dimensions (pilot dia × height, bolt circle dia, hole):

125.0 × 11.0 mm, 160.0 mm, 14.0 mm

Shaft type: Straight

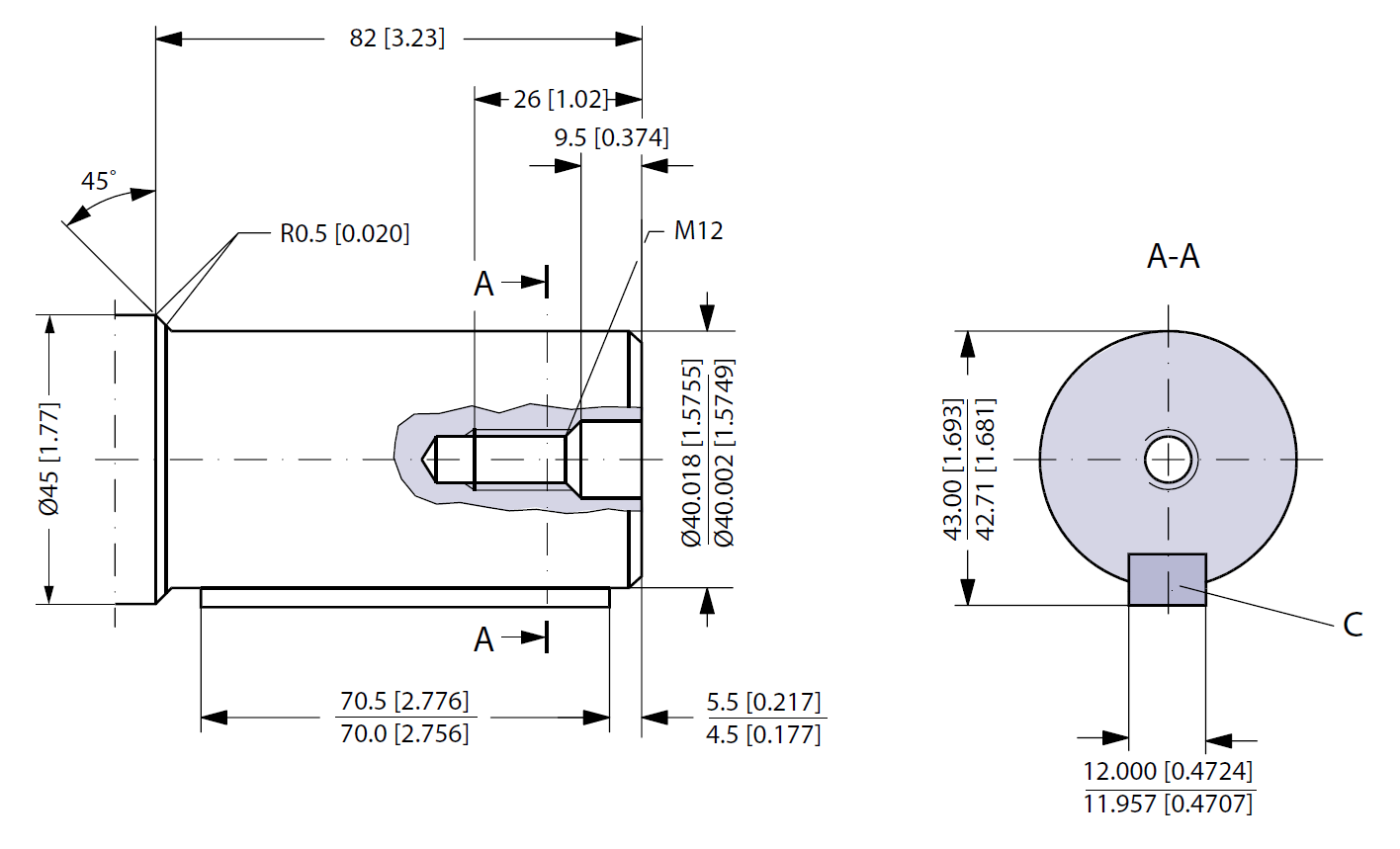

Shaft dimensions: Ø 40 mm, M12 × 1.75-6H thread in shaft end

Shaft key: Rectangular key A12 × 8 × 70 mm (DIN 6885)

Main port thread type: BSP

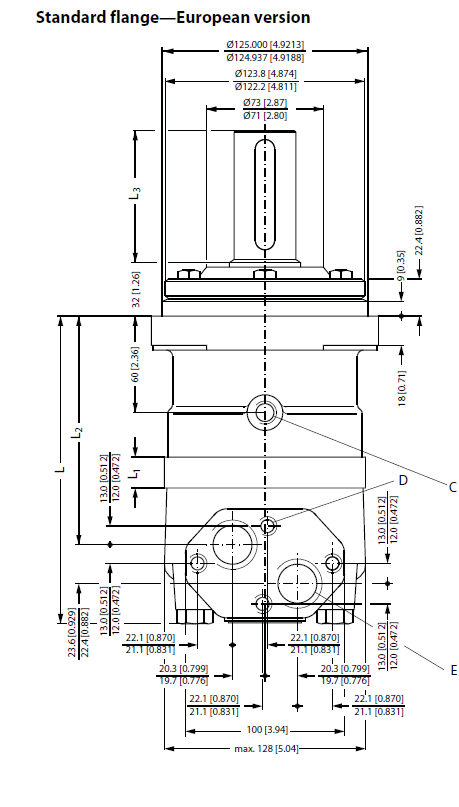

Main port style: Side ported – staggered

Main port dimension: G 3/4, 4 × M10 block mounting threads

Drain port dimension: G 1/4

Brake release port: n/a

Painted: No

Special features assembly: Standard

Dust seal: Standard

Shaft seal: NBR – standard

Seal kit: 151B0113

Front bearing type: Tapered roller bearing

Rear bearing type: Tapered roller bearing

Orbital gearwheel set: Standard

Check valve function: Yes

Hydraulic valve function: None

Sensor: None

Packaging: Single pac
