Hydraulic motor MT 200 C 40mm shaft, ALSG6-200-KW4-C40-01 Ambr
445,00 € excl. VAT
ALSG6-200-KW4-C40-01 21004300
Out of stock
ALSG6-200-KW4-C40-01 21004300
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification
Type: ALSG6 200
Displacement: 201.4 cm³/rev
Maximum speed:
-
continuous: 625 rpm
-
intermittent: 750 rpm
Maximum torque:
-
continuous: 590 N·m
-
intermittent: 710 N·m
-
peak: 838 N·m
Maximum output power:
-
continuous: 34.9 kW
-
intermittent: 40 kW
Maximum pressure drop:
-
continuous: 20 MPa
-
intermittent: 24 MPa
-
peak: 28 MPa
Maximum oil flow:
-
continuous: 125 l/min
-
intermittent: 150 l/min
Maximum inlet pressure:
-
continuous: 21 MPa
-
intermittent: 25 MPa
-
peak: 30 MPa
Weight: 20 kg
Additional information

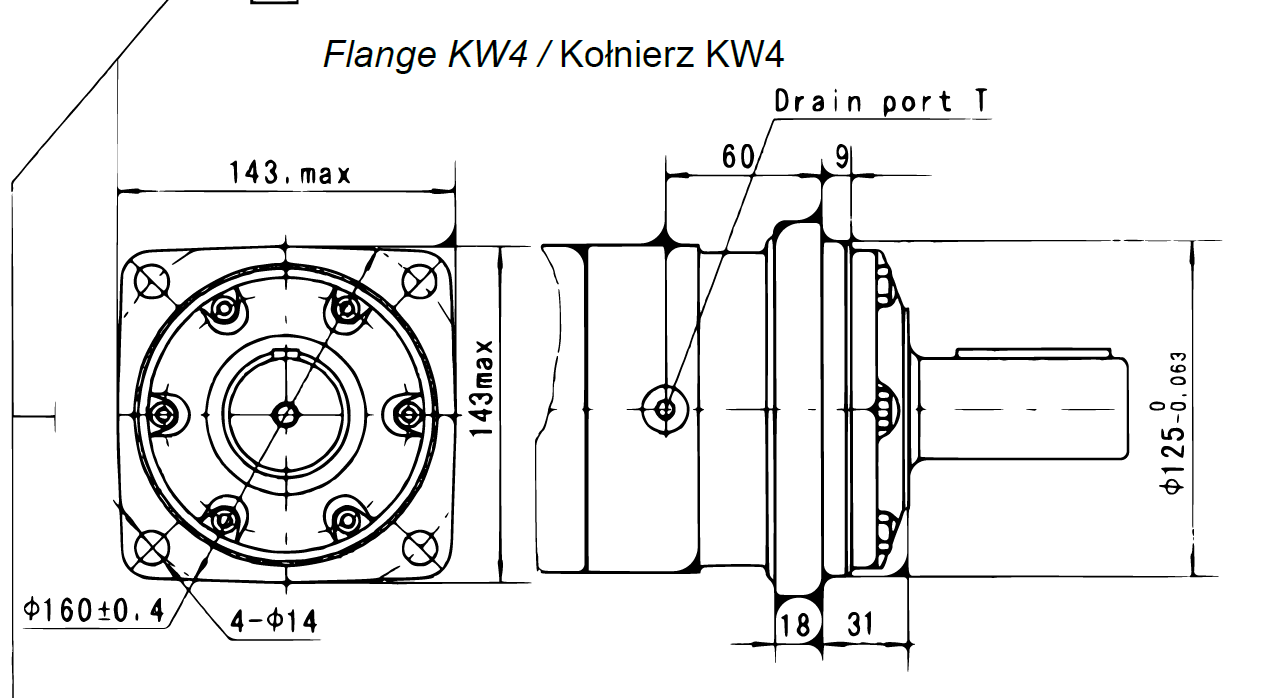

| Flange | 125mm, 160mm, 4 bolts |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 3/4” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 200 |
| Shaft | 40mm |
