Hydraulic motor MT 160 C 40mm shaft
800,00 € excl. VAT
EPMT160 SMT160A440YGP
Out of stock
EPMT160 SMT160A440YGP
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Displacement: 160 cm³/rev

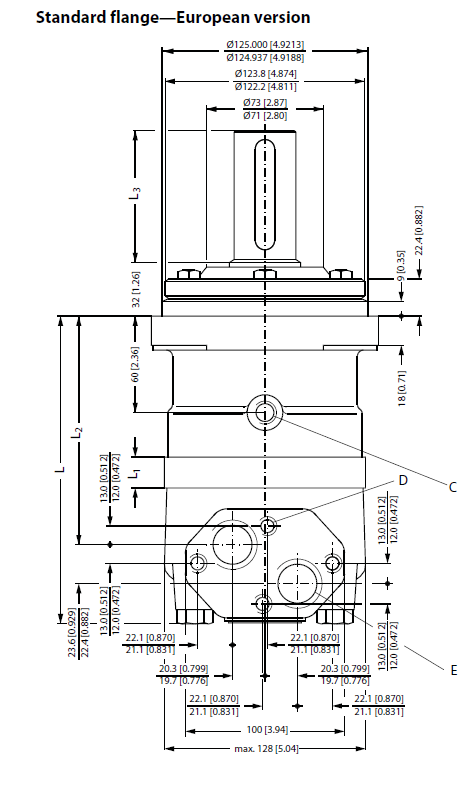

Mounting flange: Square
Number of mounting holes: 4
Shaft type: Straight, parallel

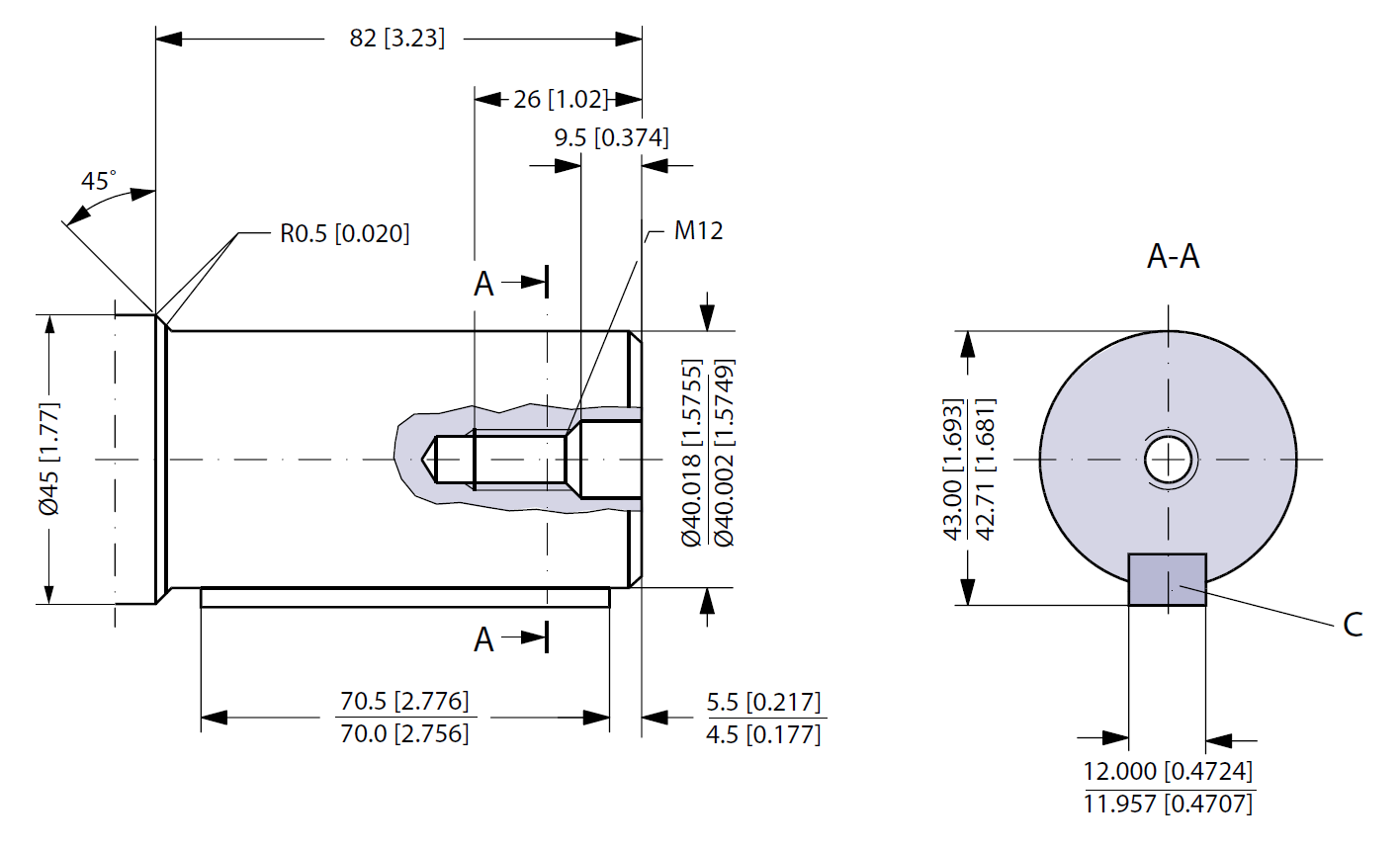

Shaft diameter: Ø40 mm
Maximum continuous torque: 450 N·m
Maximum continuous operating pressure: 200 bar
Maximum intermittent (pulsating) pressure: 240 bar
Additional information
| Flange | 125mm, 160mm, 4 bolts |
|---|---|
| Manufacturer | gopart |
| Connections | BSP 3/4” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 160 |
| Shaft | 40mm |
