Hydraulic motor MT 160 C 40mm shaft, ALSG6-160-KW4-C40-01 Ambr
395,00 € excl. VAT
ALSG6-160-KW4-C40-01 21004299
Out of stock
ALSG6-160-KW4-C40-01 21004299
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification
Type: ALSG6 160
Displacement: 161.1 cm³/rev
Maximum speed:
-
continuous: 625 rpm
-
intermittent: 780 rpm
Maximum torque:
-
continuous: 470 N·m
-
intermittent: 560 N·m
-
peak: 669 N·m
Maximum output power:
-
continuous: 27.7 kW
-
intermittent: 32 kW
Maximum pressure drop:
-
continuous: 20 MPa
-
intermittent: 24 MPa
-
peak: 28 MPa
Maximum oil flow:
-
continuous: 100 l/min
-
intermittent: 125 l/min
Maximum inlet pressure:
-
continuous: 21 MPa
-
intermittent: 25 MPa
-
peak: 30 MPa
Weight: 19.5 kg
Additional information
| Flange | 125mm, 160mm, 4 bolts |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 3/4” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 160 |

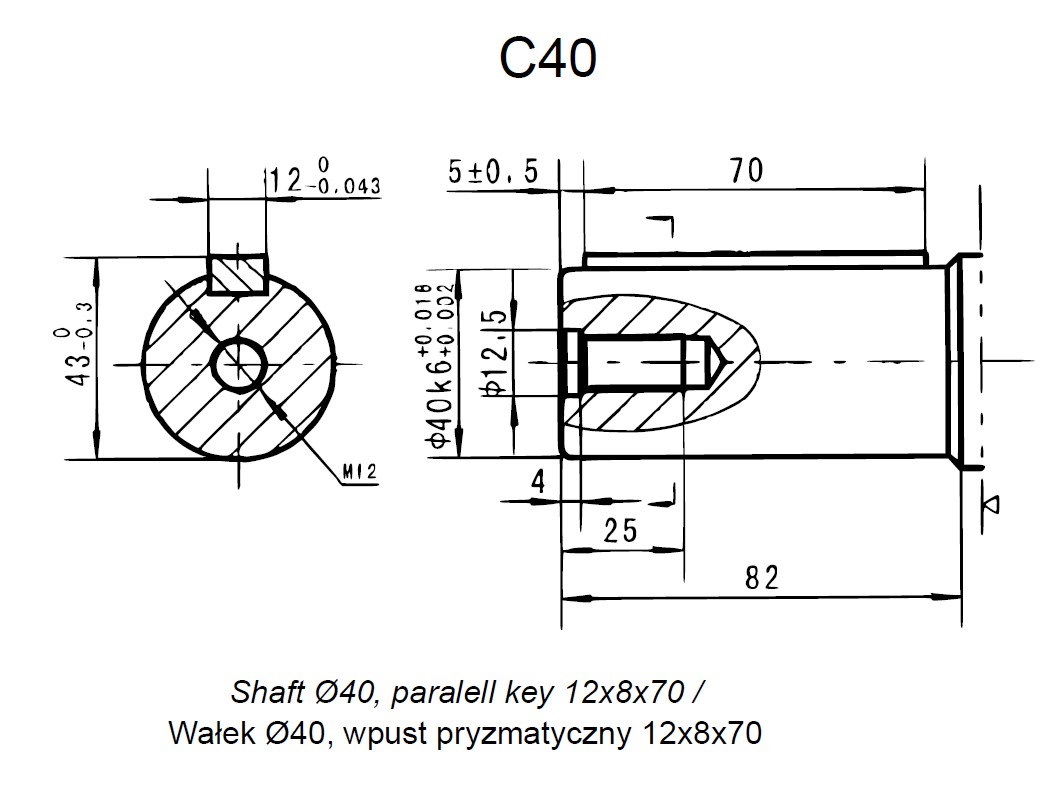

| Shaft | 40mm |
