Hydraulic motor MT 110 tapered 1:8 41.32mm 1-5/8″ shaft, Eaton M04067AC02AB02000000000000000F

Description

Specification

Model code: M04067AC02AB02000000000000000F

Series: 4000 Series

Manufacturer: DANFOSS

Sub brand: Char-Lynn

Motor type: Wheel motor

Motor function: Standard

Valve system: Disc valve with valve drive

Orbital gearwheel set: Geroler

Geometric displacement: 109.8 cm³/rev (6.70 in³/rev)

Motor size: 110

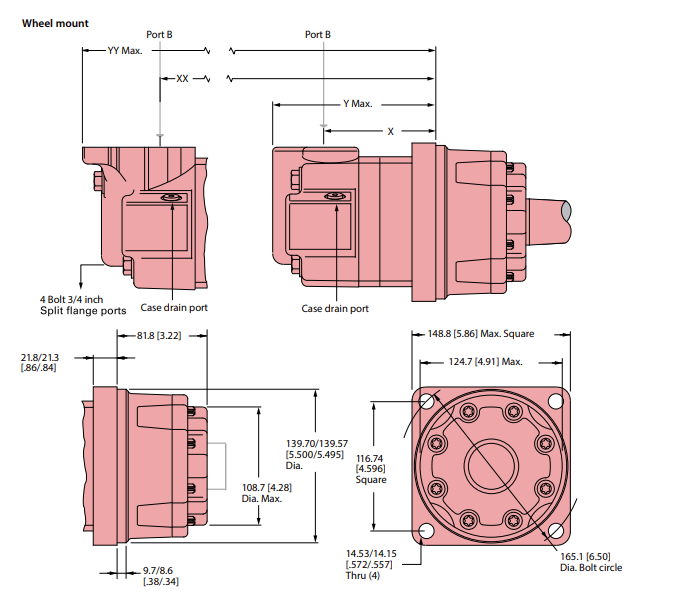

Mounting flange: 4-bolt – Wheel type

Flange dimensions (pilot dia × height / bolt circle / hole):

139.7 × 9.1 mm / 165.1 mm / 14.3 mm

[5.50 × 0.36 / 6.50 / 0.56 in]

Shaft:

• diameter: 1 5/8 inch

• taper: 1:8

• shaft end thread: 1 1/4 – 18 UNEF-2A

• shaft key: Square key 7/16 × 1 1/4 inch

Main port thread type: UN / UNF

Main port style: Side port – staggered

Main port size: 1 1/16 – 12 UN-2B SAE O-ring

Drain port: 7/16 – 20 UNF-2B SAE O-ring

Brake release port: n/a

Front bearing: Tapered roller bearing

Rear bearing: Tapered roller bearing

Shaft seal: NBR – standard

Dust seal: Standard

Seal kit: 61232-000

Check valve function: Yes

Hydraulic valve function: None

Sensor: None

Painted: No

Packaging: Single pack

Name tag: Danfoss

Dimensions:

• height: 148.844 mm (5.860 in)

• length: 207.010 mm
