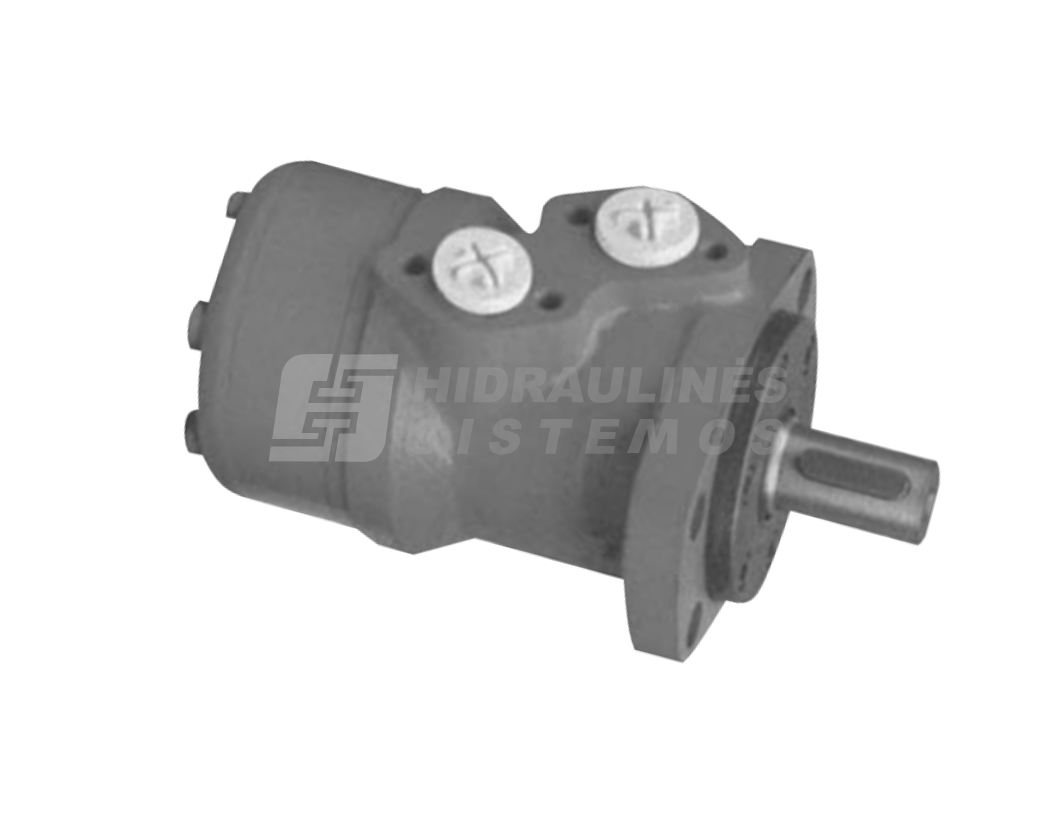

Hydraulic motor MR 400 CB 32mm shaft, ALSG2-L-400-O4-C32-01 Ambr
165,00 € excl. VAT
ALSG2-L-400-O4-C32-01 21010394
Out of stock
ALSG2-L-400-O4-C32-01 21010394
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Technical data – ALSG2 / ALSG2S 400
Type: ALSG2 / ALSG2S 400
Displacement: 381.4 cm³/rev
Max. speed (continuous): 155 rpm
Max. speed (intermittent): 190 rpm
Max. torque (continuous): 580 Nm
Max. torque (intermittent): 690 Nm
Max. torque (peak): 830 Nm
Max. output power (continuous): 7.5 kW
Max. output power (intermittent): 9.0 kW
Max. pressure drop (continuous): 11.5 MPa
Max. pressure drop (intermittent): 15 MPa
Max. pressure drop (peak): 17.5 MPa
Max. flow (continuous): 60 l/min
Max. flow (intermittent): 75 l/min
Weight: 9.5 kg
Additional information

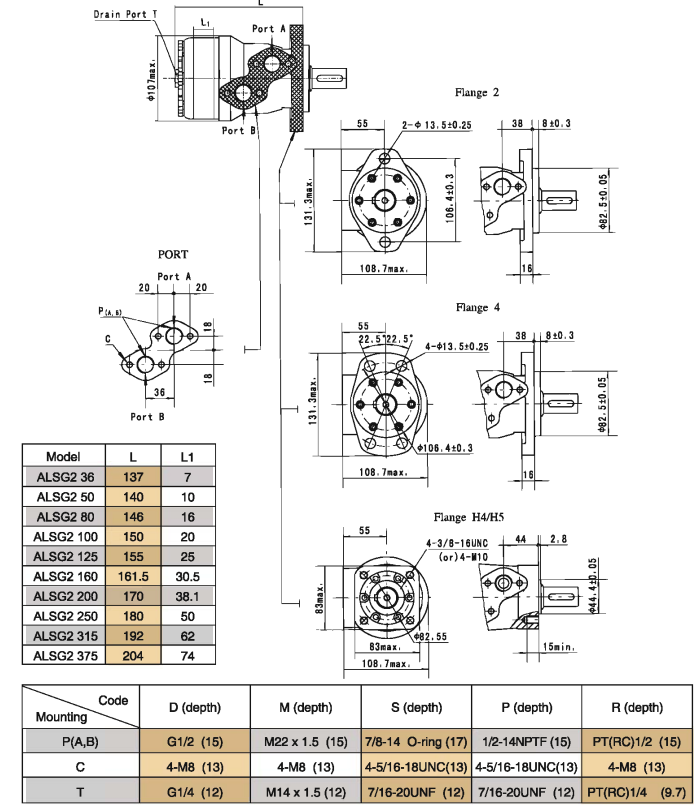

| Flange | 82.5mm, 106.4mm, 4 bolts |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 400 |

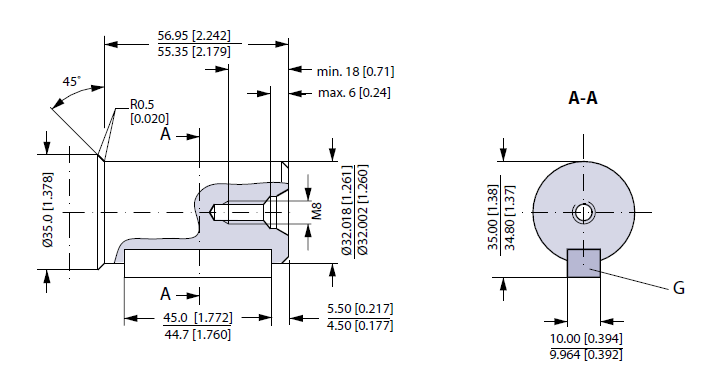

| Shaft | 32mm |
