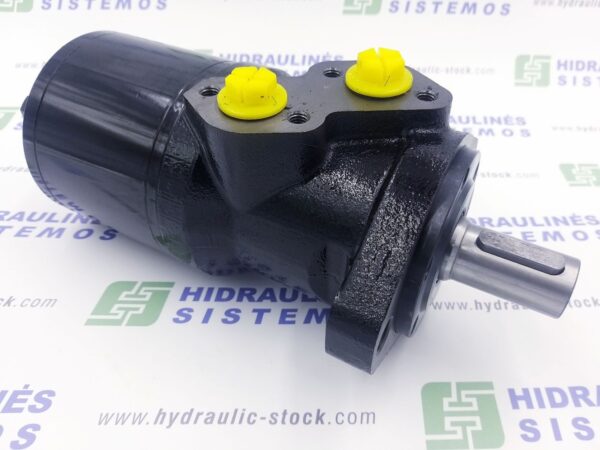

Hydraulic motor MR 400 C 25mm shaft, ziHYD BMRY-400 P41
249,00 € excl. VAT
EPRM400 MR400 OMR400 11004882 Seal kit: 151-1286
3 in stock
EPRM400 MR400 OMR400 11004882 Seal kit: 151-1286
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Specification
Type: BMR / BMRW / BMRS 400
Displacement: 401.9 ml/rev
Max. pressure drop (continuous): 7 MPa
Max. pressure drop (intermittent): 9 MPa
Max. pressure drop (peak): 11 MPa
Max. torque (continuous): 380 Nm
Max. torque (intermittent): 470 Nm
Max. torque (peak): 540 Nm
Speed range (continuous): 10–160 rpm
Max. flow (continuous): 60 l/min
Max. output power (continuous): 4 kW
Weight: 11 kg
Additional information

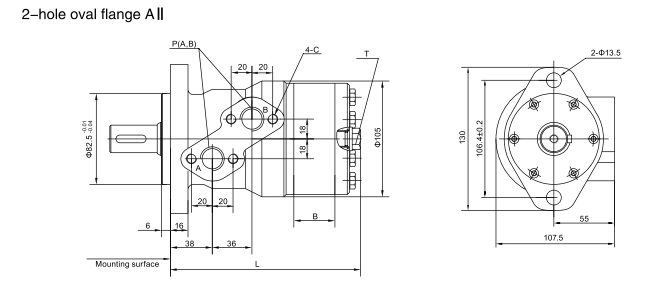

| Flange | 82.5mm 106.4mm, 2 varžtai |
|---|---|
| Manufacturer | ziHYD |
| Connections | BSP 1/2” |
| Connection side/rear | Šonas |
| Type | Orbitinis (Gerotorinis) |
| Volume | 400 |
| Shaft | 25mm |
