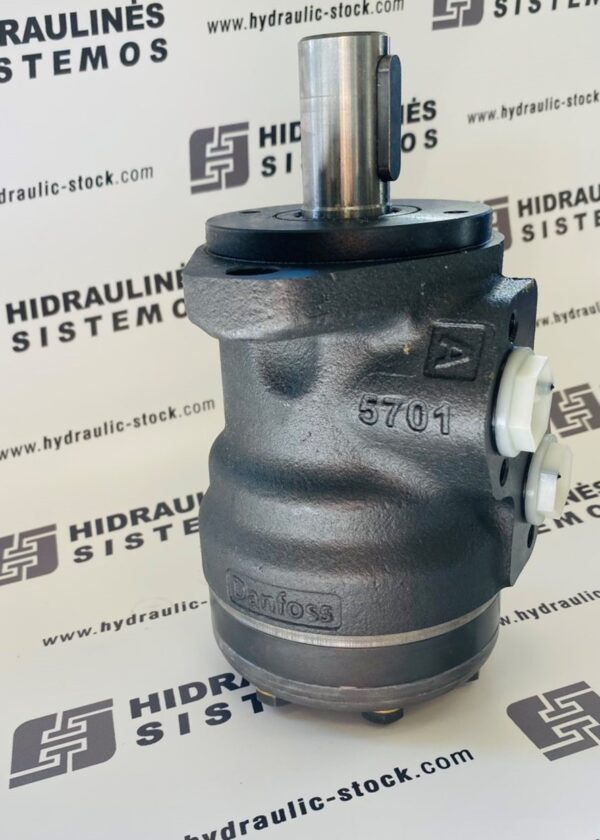

Hydraulic motor MR 375 C 25mm shaft, 11185531 A2 Danfoss
Hydraulic motor MR 375 C 25mm shaft, 11185531 A2 Danfoss
Hydraulic motor MR 375 C 25mm shaft, 11185531 A2 Danfoss
Hydraulic motor MR 375 C 25mm shaft, 11185531 A2 Danfoss
Hydraulic motor MR 375 C 25mm shaft, 11185531 A2 Danfoss
Hydraulic motor MR 375 C 25mm shaft, 11185531 A2 Danfoss
Hydraulic motor MR 375 C 25mm shaft, 11185531 A2 Danfoss
Hydraulic motor MR 375 C 25mm shaft, 11185531 A2 Danfoss
Add to wishlist

Hydraulic motor MR 375 C 25mm shaft, 11185531 A2 Danfoss

Full product specification

420,00 € excl. VAT

Out of stock

Enter your email address and we will notify you as soon as the item is available.
SKU: HMR375X Category:
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Send inquiry

Product information

Specifications

Description

Technical data – OMRX 375

Motor family: OMRX

Motor series: OMR X Motor

Motor size / displacement: 375 cm³/rev

Motor type: Standard motor

Mounting type: B11

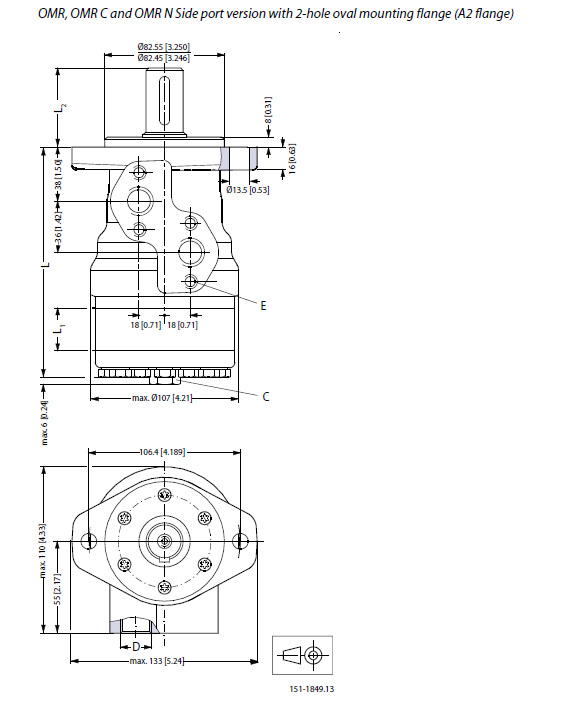

Mounting flange: A2 flange; pilot Ø 82.5 × 8 mm; bolt circle Ø 106.4 mm

Port type: Side port – offset

Main port thread: G 1/2

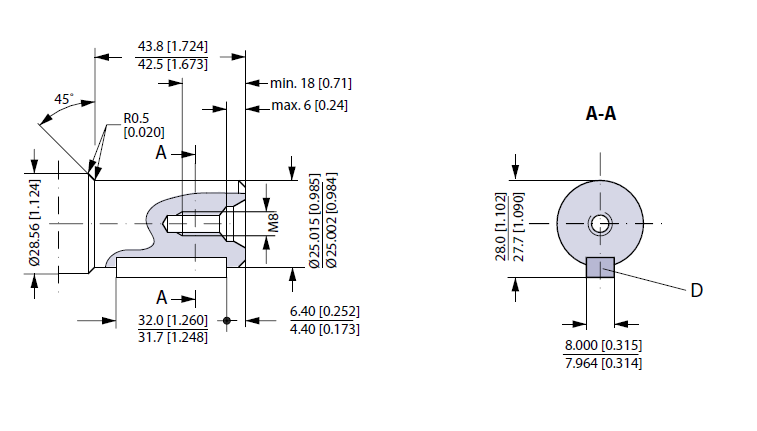

Output shaft: Ø 25 mm cylindrical with straight key; M8 thread in shaft end

Shaft seal: High pressure NBR

Dust seal: Integrated in shaft seal

Drain port: G 1/4

Check valve: Yes

Brake release port: None

Speed sensor: None

Paint: No paint

Valve option: None

Special feature – external: None

Special feature – visible: None

Special feature – internal: None

Packaging: Single pack

Motor label: Danfoss name tag

Additional information

Flange

82.5mm 106.4mm, 2 bolts
Manufacturer

Danfoss
Connections

BSP 1/2”
Connection side/rear

Side
Type

Orbital (Gerotor)
Volume

375
Shaft

25mm
