Hydraulic motor MR 315 SH 6-tooth shaft, ALSG2-L-315-O2-SH-01 Ambr
160,00 € excl. VAT
ALSG2-L-315-O2-SHD-01 21011718 OMR315SH
Out of stock
ALSG2-L-315-O2-SHD-01 21011718 OMR315SH
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Type: ALSG2 / ALSG2S 315 |
| Displacement: 317.5 cm³/rev |
| Max. speed (continuous): 190 rpm |
| Max. speed (intermittent): 240 rpm |
| Max. torque (continuous): 550 Nm |
| Max. torque (intermittent): 690 Nm |
| Max. torque (peak): 840 Nm |
| Max. output power (continuous): 9.0 kW |
| Max. output power (intermittent): 10.0 kW |
| Max. pressure drop (continuous): 13.5 MPa |
| Max. pressure drop (intermittent): 17.5 MPa |
| Max. pressure drop (peak): 21 MPa |
| Max. flow (continuous): 60 l/min |
| Max. flow (intermittent): 75 l/min |
| Weight: 9.0 kg |
Additional information

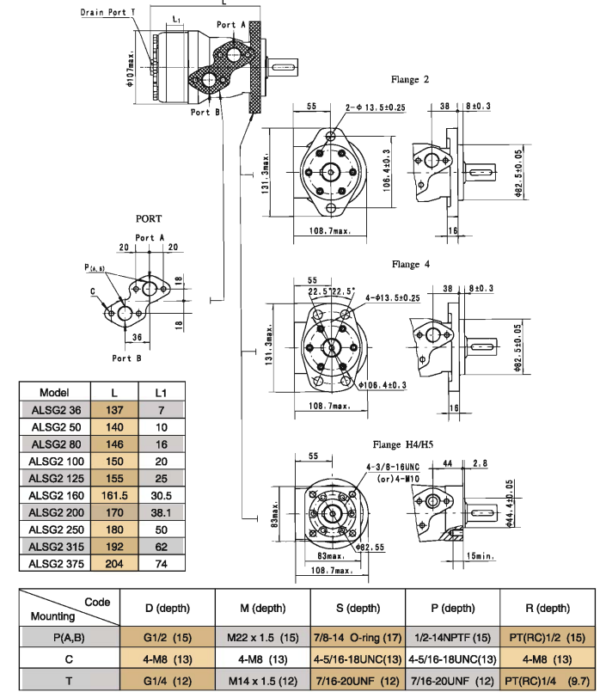

| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 315 |
| Shaft | 6 teeth, 25.4mm |
