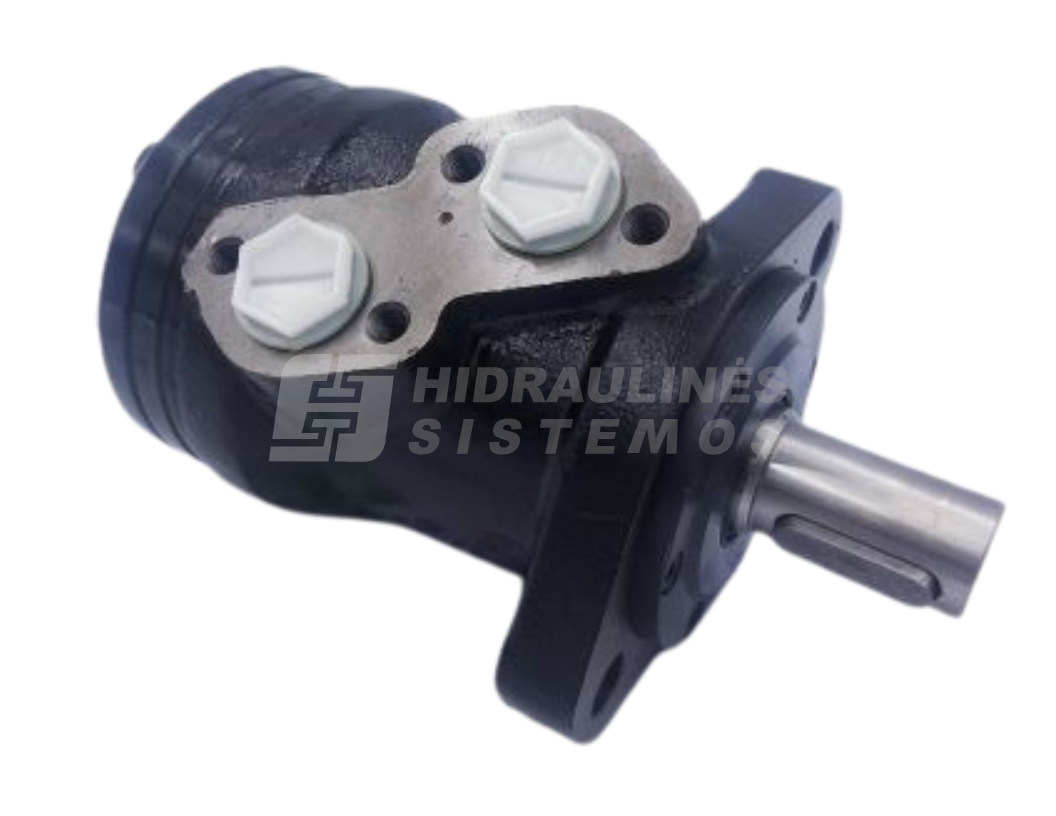

Hydraulic motor MR 315 CB 32mm shaft
145,00 € excl. VAT
BRM315; BMRY-315 P52 AIIY10-T10
Out of stock
BRM315; BMRY-315 P52 AIIY10-T10
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Type: BMR / BMRW / BMRS 315
Displacement: 321.5 ml/rev
Max. pressure drop (continuous): 9 MPa
Max. pressure drop (intermittent): 11 MPa
Max. pressure drop (peak): 13 MPa
Max. torque (continuous): 380 Nm
Max. torque (intermittent): 470 Nm
Max. torque (peak): 540 Nm
Speed range (continuous): 10–190 rpm
Max. flow (continuous): 60 l/min
Max. output power (continuous): 5 kW
Weight: 9.0 kg
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | ziHYD |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 315 |

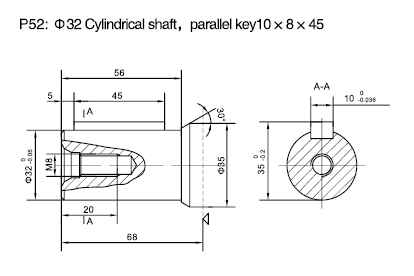

| Shaft | 32mm |
