Hydraulic motor MR 315 C 25mm shaft, ziHYD BMRY-315 P41
135,00 € excl. VAT
SH120101027050
3 in stock
SH120101027050
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Type: BMR / BMRW / BMRS 315
Displacement: 321.5 ml/rev
Max. pressure drop (continuous): 9 MPa
Max. pressure drop (intermittent): 11 MPa
Max. pressure drop (peak): 13 MPa
Max. torque (continuous): 380 Nm
Max. torque (intermittent): 470 Nm
Max. torque (peak): 540 Nm
Speed range (continuous): 10–190 rpm
Max. flow (continuous): 60 l/min
Max. output power (continuous): 5 kW
Weight: 9.0 kg
Additional information

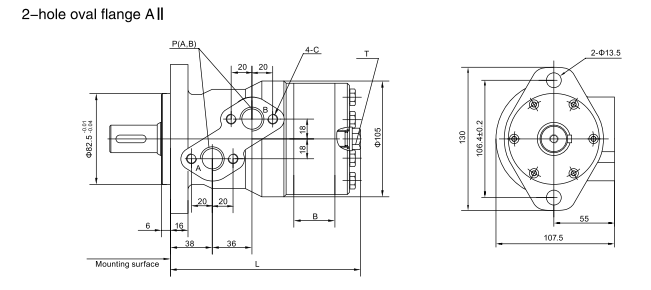

| Flange | 82.5mm 106.4mm, 2 varžtai |
|---|---|
| Manufacturer | ziHYD |
| Connections | BSP 1/2” |
| Connection side/rear | Šonas |
| Type | Orbitinis (Gerotorinis) |
| Volume | 315 |
| Shaft | 25mm |
