Hydraulic motor MR 315 C 25mm shaft, MCS305 AA 02 AA110020A000C0

Description

Model code: MCS305AA02AA110020A000C00B

Motor series: XLS Series

Valve system: Spool valve

Orbital gearwheel set type: Geroler

Motor size: 305

Geometric displacement: 305.7 cm³/rev (18.65 in³/rev)

Motor type: Standard

Motor function: Standard

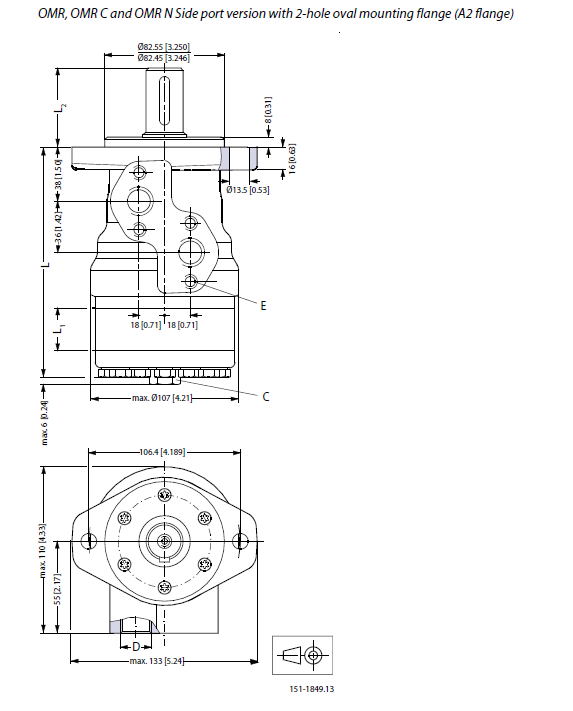

Mounting flange type: 2 Bolt – A

Mounting flange dimensions: Pilot Ø 82.6 × 5.0 mm, bolt circle Ø 106.4 mm, hole Ø 13.5 mm

Shaft type: Straight

Shaft dimension: Ø 25 mm, M8 thread in shaft end

Shaft key: Rectangular key A8 × 7 × 32 mm

Main port thread type: BSP

Main port style: Sideport – staggered

Main port dimension: G 1/2, 4 × M8 block mounting threads

Drain port dimension: G 1/4

Brake release port: n/a

Painted: Yes

Paint information: Painted, black

Special features assembly: Standard

Dust seal: Standard

Shaft seal: NBR – high pressure

Seal kit: Z331-59

Front bearing type: Journal bearing

Rear bearing type: Journal bearing

Orbital gearwheel set: Standard

Check valve function: Yes

Hydraulic valve function: None

Sensor: None

Packaging: No data available

Name tag: Danfoss name tag

Design code: 2

Brand: DANFOSS

Product height: 93.98 mm

Product length: 194.06 mm

Product width: 130.05 mm
