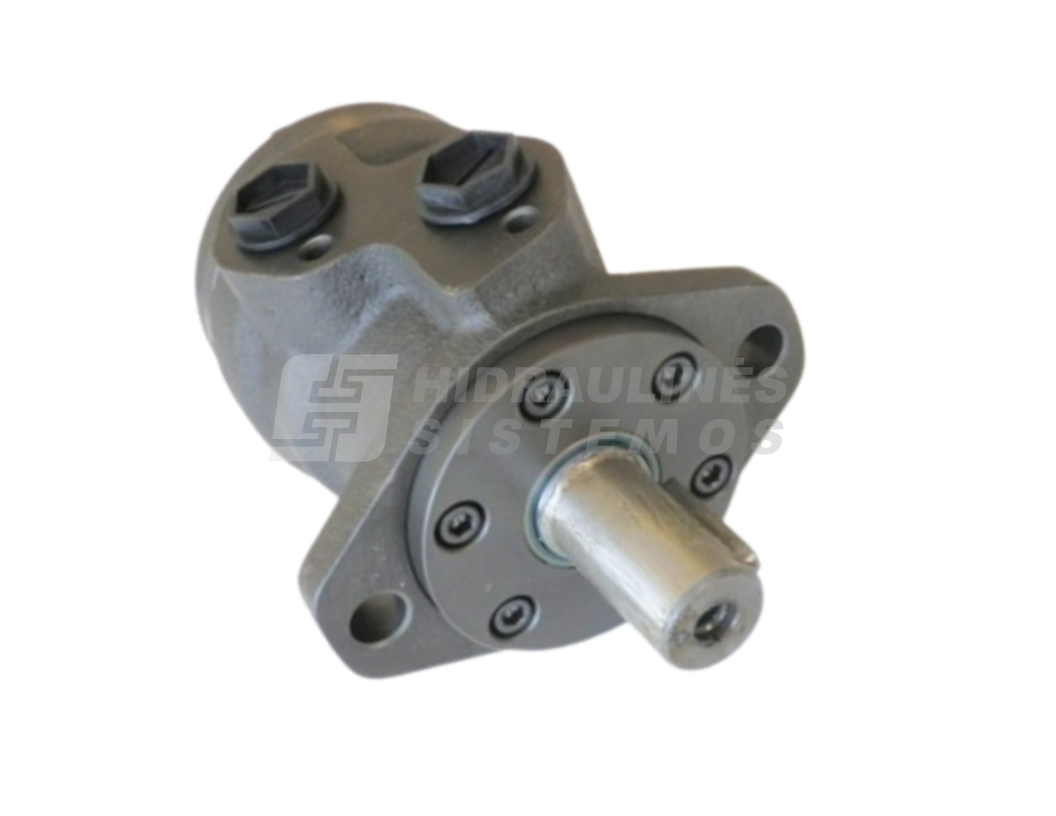

Hydraulic motor MR 315 C 25mm shaft, MC-RN
250,00 € excl. VAT
MCRN315CD0
Out of stock
MCRN315CD0
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
Model code: MCRN315CD0
Type: MC-RN 315 CD
Displacement: 317.5 cm³/rev
Maximum speed: 190 rpm
Maximum torque: 39.0 daNm
Maximum flow: 60 l/min
Pressure drop Δp: 90 bar
Max. inlet pressure: 175 bar
Max. return pressure: 175 bar
Operating mode: Continuous duty
Port A–B: 1/2″
Port T (drain): 1/4″
Length L: 192.0 mm
Length L1: 62.0 mm
Weight: 9.0 kg
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | Contarini |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 315 |
| Shaft | 25mm |
