Hydraulic motor MR 250 SH 6-tooth shaft
333,60 € excl. VAT
EPRM250SH BMR-250H3AIIY/T10 120101025060
2 in stock
EPRM250SH BMR-250H3AIIY/T10 120101025060
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Type: BMR / BMRW / BMRS 250 |
| Displacement: 252.6 ml/rev |
| Max. pressure drop (continuous): 11 MPa |
| Max. pressure drop (intermittent): 14 MPa |
| Max. pressure drop (peak): 16 MPa |
| Max. torque (continuous): 380 Nm |
| Max. torque (intermittent): 470 Nm |
| Max. torque (peak): 540 Nm |
| Speed range (continuous): 10–240 rpm |
| Max. flow (continuous): 60 l/min |
| Max. output power (continuous): 6 kW |
| Weight: 8.5 kg |
Additional information

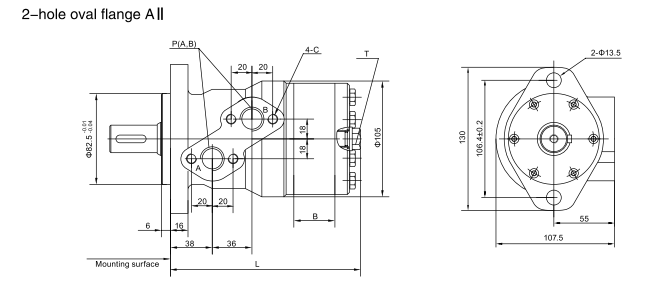

| Flange | 82.5mm 106.4mm, 2 varžtai |
|---|---|
| Connections | BSP 1/2” |
| Connection side/rear | Šonas |
| Type | Orbitinis (Gerotorinis) |
| Volume | 250 |
| Shaft | 6 dantys, 25.4mm |
