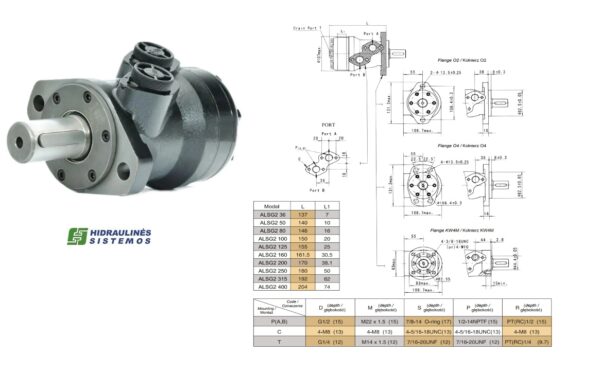

Hydraulic motor MR 250 CB 32mm shaft, ALSG2-L-250-O2-C32-01 Ambr
160,00 € excl. VAT
BRM250; SH250101016003, BMR-250-2-B-DH 151-0244 EPRM-250CB ALSG2-250-O2-C32-01
2 in stock
BRM250; SH250101016003, BMR-250-2-B-DH 151-0244 EPRM-250CB ALSG2-250-O2-C32-01
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Type: ALSG2 / ALSG2S 250 |
| Geometric displacement: 253.3 cm³/rev |
| Max. speed (continuous): 240 rpm |
| Max. speed (intermittent): 300 rpm |
| Max. torque (continuous): 540 Nm |
| Max. torque (intermittent): 610 Nm |
| Max. torque peak: 710 Nm |
| Max. output power (continuous): 10.0 kW |
| Max. output power (intermittent): 12.0 kW |
| Max. pressure drop (continuous): 17.5 MPa |
| Max. pressure drop (intermittent): 20 MPa |
| Max. pressure peak: 22.5 MPa |
| Max. flow (continuous): 60 l/min |
| Max. flow (intermittent): 75 l/min |
| Weight: 8.5 kg |
Additional information

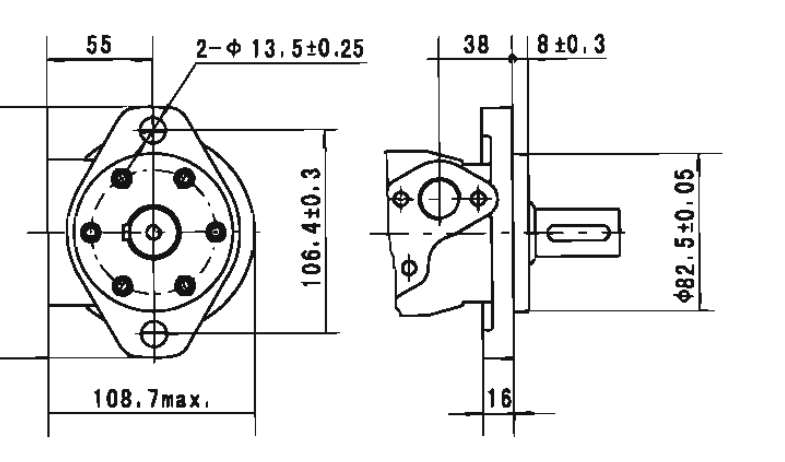

| Flange | 82.5mm 106.4mm, 2 varžtai |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 1/2” |
| Connection side/rear | Šonas |
| Type | Orbitinis (Gerotorinis) |
| Volume | 250 |
| Shaft | 32mm |
