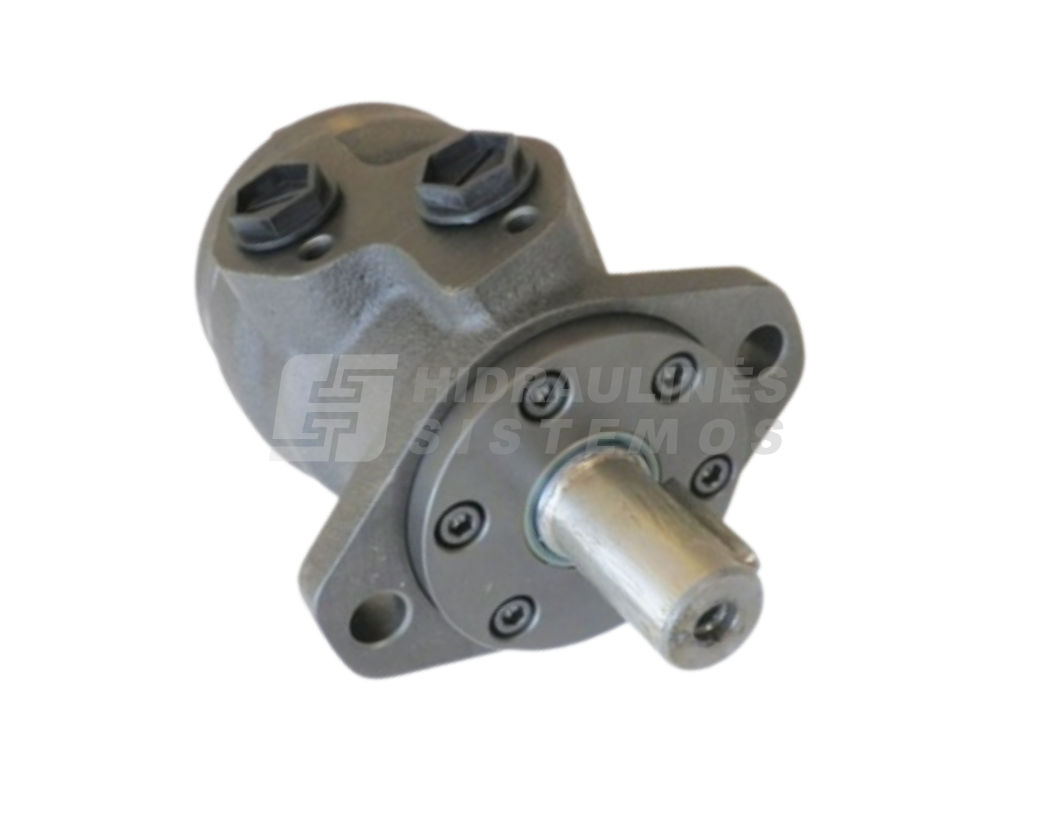

Hydraulic motor MR 250 C 25mm shaft, MC-RN
246,18 € excl. VAT
MCRN250CD0
Out of stock
MCRN250CD0
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Model code: MCRN250CD0 |
| Type: MC-RN 250 CD |
| Displacement: 253.3 cm³/rev |
| Max. speed: 240 rpm |
| Max. torque: 39.0 daNm |
| Max. flow rate: 60 l/min |
| Max. pressure drop (Δp): 110 bar |
| Max. inlet pressure: 175 bar |
| Max. return pressure: 175 bar |
| Port A–B: 1/2″ |
| Port T: 1/4″ |

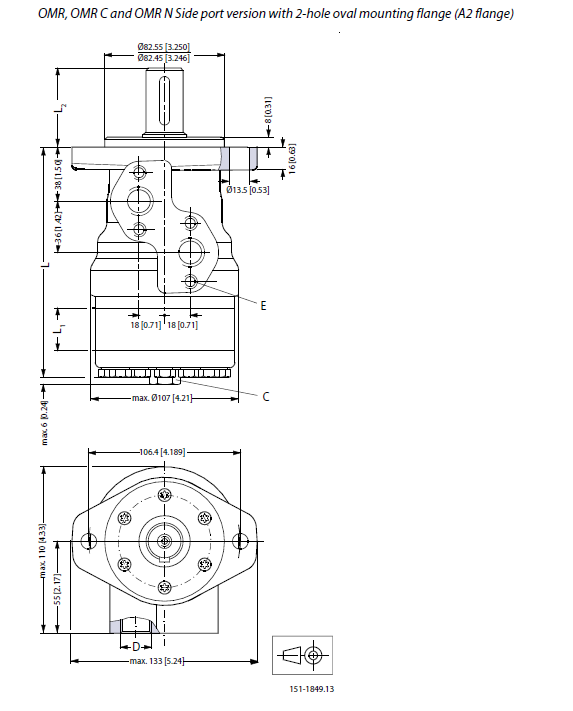

| Length (L): 180.0 mm |
| Length L1: 50.0 mm |
| Weight: 8.50 kg |
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | Contarini |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 250 |
| Shaft | 25mm |
