Hydraulic motor MR 200 SHD ALSG2-L-200-O2-SHD-01
160,00 € excl. VAT
21004277 ALSG2-L-200-O2-SHD-01
Out of stock
21004277 ALSG2-L-200-O2-SHD-01
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

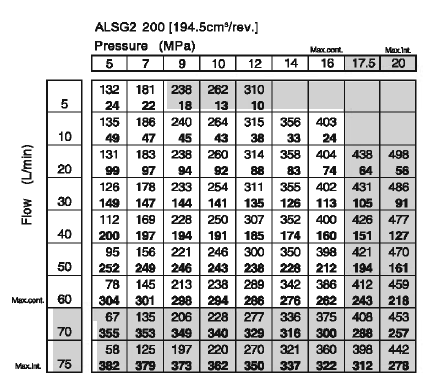

| Specification |
|---|
| Type: ALSG2 / ALSG2S 200 |
| Geometric displacement: 194.5 cm³/rev |
| Max. speed (continuous): 310 rpm |
| Max. speed (intermittent): 385 rpm |
| Max. torque (continuous): 450 Nm |
| Max. torque (intermittent): 500 Nm |
| Max. torque peak: 560 Nm |
| Max. output power (continuous): 11.0 kW |
| Max. output power (intermittent): 13.0 kW |
| Max. pressure drop (continuous): 17.5 MPa |
| Max. pressure drop (intermittent): 20 MPa |
| Max. pressure peak: 22.5 MPa |
| Max. flow (continuous): 60 l/min |
| Max. flow (intermittent): 75 l/min |
| Weight: 8.0 kg |
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | Amberline Hydraulics |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 200 |

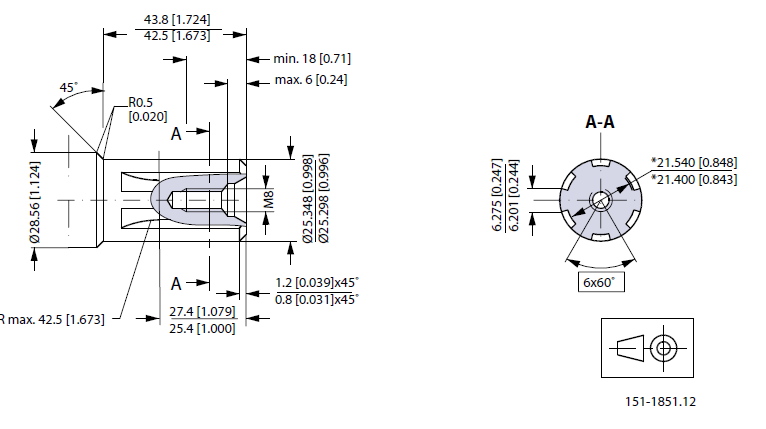

| Shaft | 6 teeth, 25.4mm |
