Hydraulic motor MR 200 SH 6-tooth shaft, ziHYD BMRY-200 H3
140,00 € excl. VAT
120101020158
Out of stock
120101020158
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Type: BMR-200 |
| Displacement: 200.9 ml/rev |
| Max. pressure drop (continuous): 14 MPa |
| Max. pressure drop (intermittent): 17.5 MPa |
| Max. pressure peak: 20 MPa |
| Max. torque (continuous): 369 Nm |
| Max. torque (intermittent): 450 Nm |
| Max. torque peak: 509 Nm |
| Continuous speed range: 10–300 rpm |
| Max. flow (continuous): 60 l/min |
| Max. output power (continuous): 8 kW |
| Weight: 8.0 kg |
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | ziHYD |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 200 |

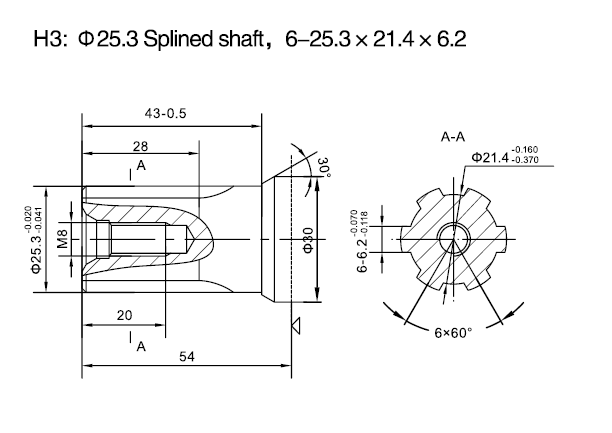

| Shaft | 6 teeth, 25.4mm |
