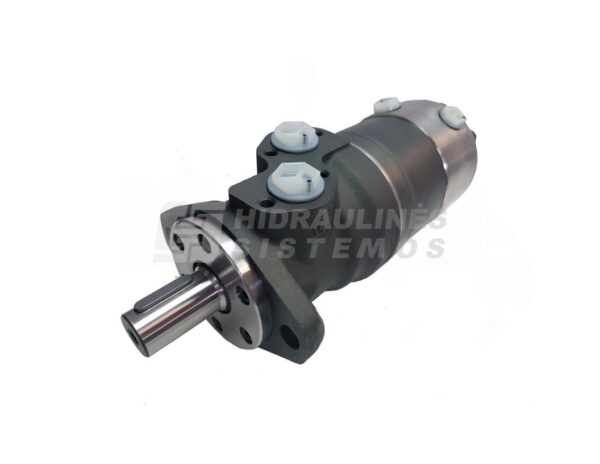

Hydraulic motor MR 200 CO 25.4mm 1″ shaft, White
850,00 € excl. VAT
11029276 / OMR 200 F, motor for parking brake
Out of stock
11029276 / OMR 200 F, motor for parking brake
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Series: OMR F |
| Drain port style: Standard – piston housing |
| Dust seal: Standard |
| Front bearing: Journal bearing |
| Mounting flange: 2-bolt – A |
| Packaging: Single pack |
| Paint: Black – RAL 9005 |
| Port dimensions: G 1/2, G 1/4 |
| Port style: Side ported – offset manifold (4 × M8) |
| Displacement: 200 cm³/rev |
| Seal kit: 151-1287 |
| Series: O-Series |
| Shaft seal: NBR – standard |
| Shaft size: Diameter 1 inch – M8 tap |
| Shaft style: Splined – 6B |
| Design: 5 |
| Mounting thread dimensions: Pilot dia. 82.5 × 8.1 mm [3.25 × 0.32 in], bolt circle dia. 106.4 mm [4.19 in], hole dia. 13.6 mm [0.53 in] |
| Type code: None |
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | White |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 200 |
| Shaft | 25.4mm |
