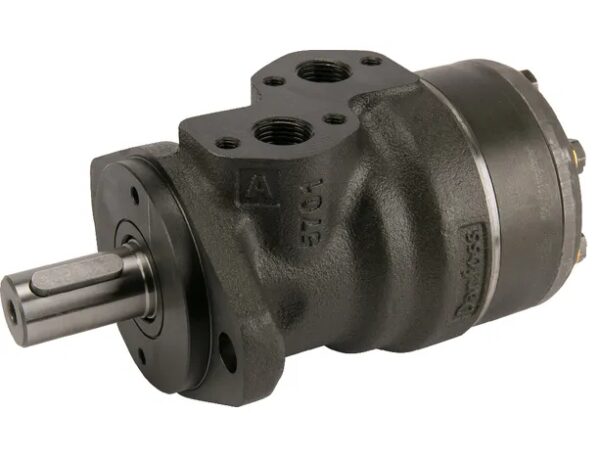

Hydraulic motor MR 200 C 25mm shaft, OMRX200 Danfoss
Original price was: 380,00 €.350,00 €Current price is: 350,00 €. excl. VAT
OMRX200 11186665 Orbit motor, shaft Ø25 A2 151-0715
Out of stock
OMRX200 11186665 Orbit motor, shaft Ø25 A2 151-0715
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Motor family: OMRX (OMR X motor) |
| Motor size / displacement: 200 cm³/rev |
| Motor type: Standard |
| Mounting type: B11 |
| Mounting flange: A2 flange; pilot dia. 82.5 × 8 mm; bolt circle dia. 106.4 mm |
| Port type: Side port – offset |
| Main port thread: G 1/2 |

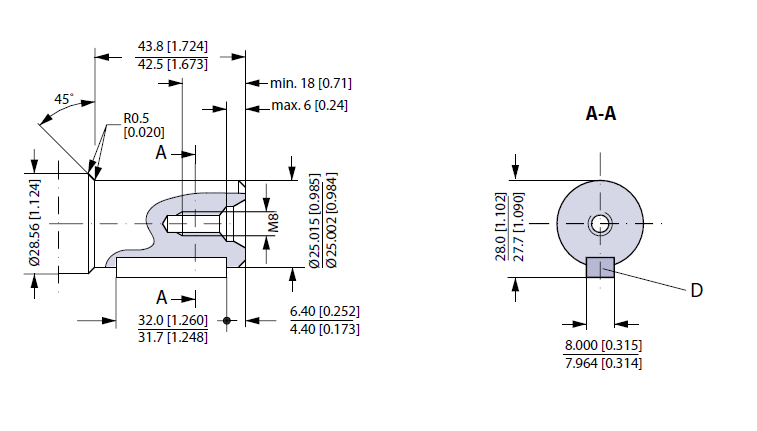

| Output shaft: Cylindrical 25 mm with straight key; M8 thread in shaft end |
| Shaft seal: High pressure NBR |
| Dust seal: Integrated in shaft seal |
| Drain port: G 1/4 |
| Check valve: Yes |
| Brake release port: None |
| Speed sensor: None |
| Paint: No paint |
| Valve option: None |
| Special feature – external: None |
| Special feature – visible: None |
| Special feature – internal: None |
| Packaging: Single pack |
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | Danfoss |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 200 |
| Shaft | 25mm |
