Hydraulic motor MR 160 SH 6-tooth shaft, ziHYD BMRY-160 H3
210,00 € excl. VAT
EPRM160SHD BMRY-160 H3 SH120101016058
Out of stock
EPRM160SHD BMRY-160 H3 SH120101016058
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

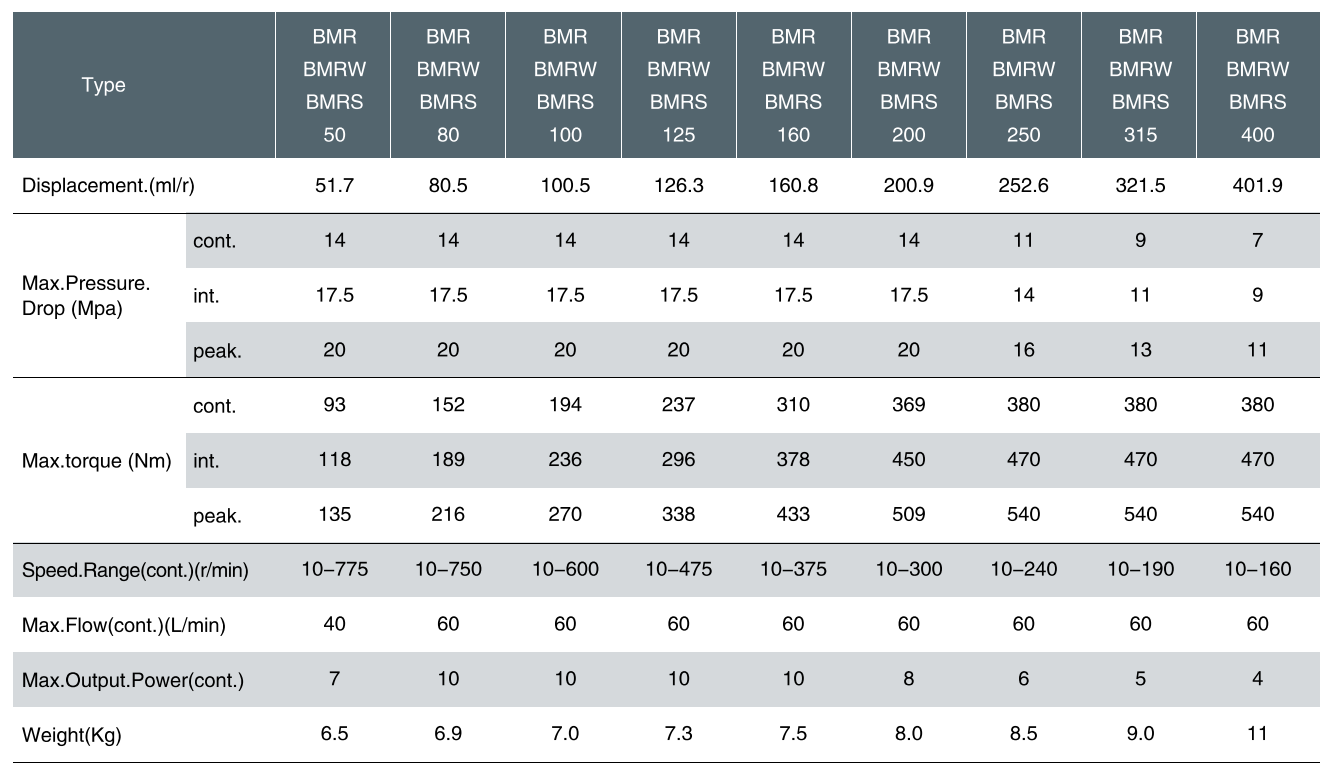

| Specification |
|---|
| Type: BMR-160 |
| Displacement: 160.8 ml/rev |
| Max. pressure drop (continuous): 14 MPa |
| Max. pressure drop (intermittent): 17.5 MPa |
| Max. pressure peak: 20 MPa |
| Max. torque (continuous): 310 Nm |
| Max. torque (intermittent): 378 Nm |
| Max. torque peak: 433 Nm |
| Continuous speed range: 10–375 rpm |
| Max. flow (continuous): 60 l/min |
| Max. output power (continuous): 10 kW |
| Weight: 7.5 kg |
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | ziHYD |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 160 |
| Shaft | 6 teeth, 25.4mm |
