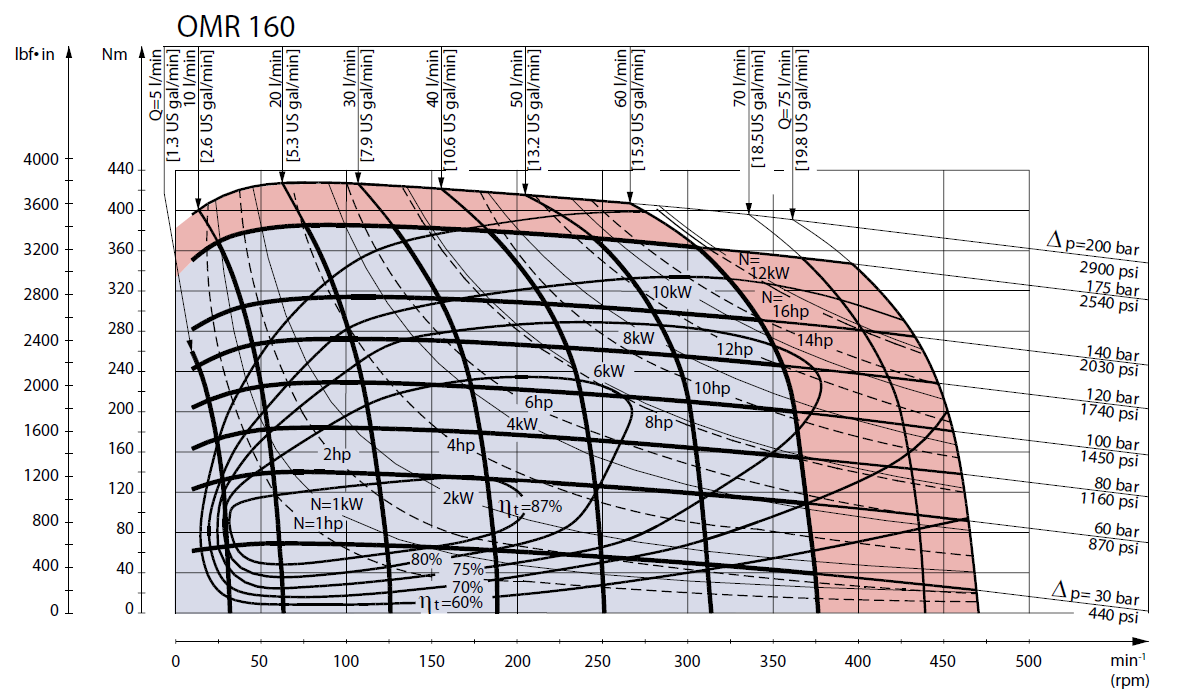

Hydraulic motor MR 160 SH 6-tooth shaft, MCS160 AA 04 AA010000A000B00B SH
226,00 € excl. VAT
MCS160AA04AA010000A000B00B 036-0032-002 OMR160SH MR160SH SMR160SH BMR160SH MMR160SH EPRM160SHD
Out of stock
MCS160AA04AA010000A000B00B 036-0032-002 OMR160SH MR160SH SMR160SH BMR160SH MMR160SH EPRM160SHD
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Model code: MCS160AA04AA010000A000B00B |
| Motor series: XLS Series |
| Valve system: Spool valve |
| Orbital gearwheel set type: Geroler |
| Motor size: 160 |
| Geometric displacement: 157.7 cm³/rev [9.62 in³/rev] |
| Motor type: Standard |
| Motor function: Standard |
| Mounting flange type: 2-bolt – A |
| Mounting flange dimensions: 82.6 × 5.0 mm (pilot dia × height), bolt circle dia 106.4 mm, hole 13.5 mm [3.25 × 0.20 in, 4.19 in, 0.53 in] |
| Shaft type: Splined |
| Shaft dimensions: Diameter 1 inch, SAE 6B, 1/4–20 UNC-2B thread in shaft end |
| Shaft key: N/A |
| Main port thread type: BSP |
| Main port style: Side port – staggered |
| Main port dimensions: G 1/2, 4 × M8 block mounting threads |
| Drain port dimensions: None |
| Brake release port dimensions: N/A |
| Painted: Yes |
| Paint information: Painted, blue |
| Special features assembly: Standard |
| Dust seal: Standard |
| Shaft seal: NBR – standard |
| Seal kit: Z331-25 |
| Front bearing type: Journal bearing |
| Rear bearing type: Journal bearing |
| Orbital gearwheel set: Standard |
| Check valve function: Yes |
| Hydraulic valve function: None |
| Sensor: None |
| Packaging: No data available |
| Name tag: Danfoss name tag |
| Brand: Danfoss |
| Product height: 3.700 in / 93.980 mm |
| Product length: 6.570 in / 166.878 mm |
| Product width: 5.120 in / 130.048 mm |
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | Eaton Char-Lynn |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 160 |
| Shaft | 6 teeth, 25.4mm |
