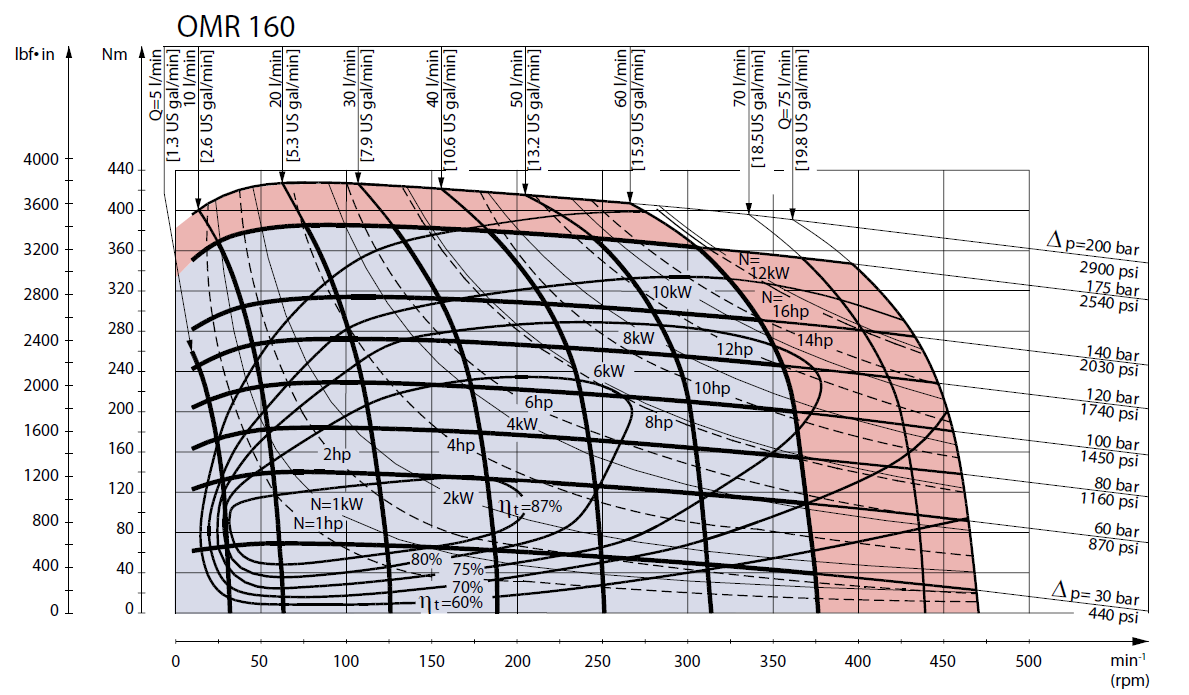

Hydraulic motor MR 160 C 25mm shaft, MCS160 AA 02 AA110020A000B0 without drain
191,60 € excl. VAT
MCS160AA02AA110020A000B0 036-0041-002 MR160CD1
Out of stock
MCS160AA02AA110020A000B0 036-0041-002 MR160CD1
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description
| Specification |
|---|
| Model code: MCS160AA02AA110020A000B00B |
| Motor series: XLS Series |
| Valve system: Spool valve |
| Orbital gearwheel set type: Geroler |
| Motor size: 160 |
| Geometric displacement: 157.7 cm³/rev [9.62 in³/rev] |
| Motor type: Standard |
| Motor function: Standard |
| Mounting flange type: 2-bolt – A |
| Mounting flange dimensions: 82.6 × 5.0 mm (pilot dia × height), bolt circle dia 106.4 mm, hole 13.5 mm [3.25 × 0.20 in, 4.19 in, 0.53 in] |
| Shaft type: Straight |
| Shaft dimensions: Diameter 25 mm, M8 thread in shaft end (special component) |
| Shaft key: Rectangular key A8 × 7 × 32 mm |
| Main port thread type: BSP |
| Main port style: Side port – staggered |
| Main port dimensions: G 1/2, 4 × M8 block mounting threads |
| Brake release port dimensions: N/A |
| Painted: Yes |
| Paint information: Painted, blue |
| Special features assembly: Standard |
| Dust seal: Standard |
| Shaft seal: NBR – high pressure |
| Seal kit: Z331-59 |
| Front bearing type: Journal bearing |
| Rear bearing type: Journal bearing |
| Orbital gearwheel set: Standard |
| Check valve function: Yes |
| Hydraulic valve function: None |
| Sensor: None |
| Packaging: No data available |
| Name tag: Danfoss name tag |
| Brand: Danfoss |
| Product height: 3.700 in / 93.980 mm |
| Product length: 6.570 in / 166.878 mm |
| Product width: 5.120 in / 130.048 mm |
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | Eaton Char-Lynn |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 160 |
| Shaft | 25mm |
