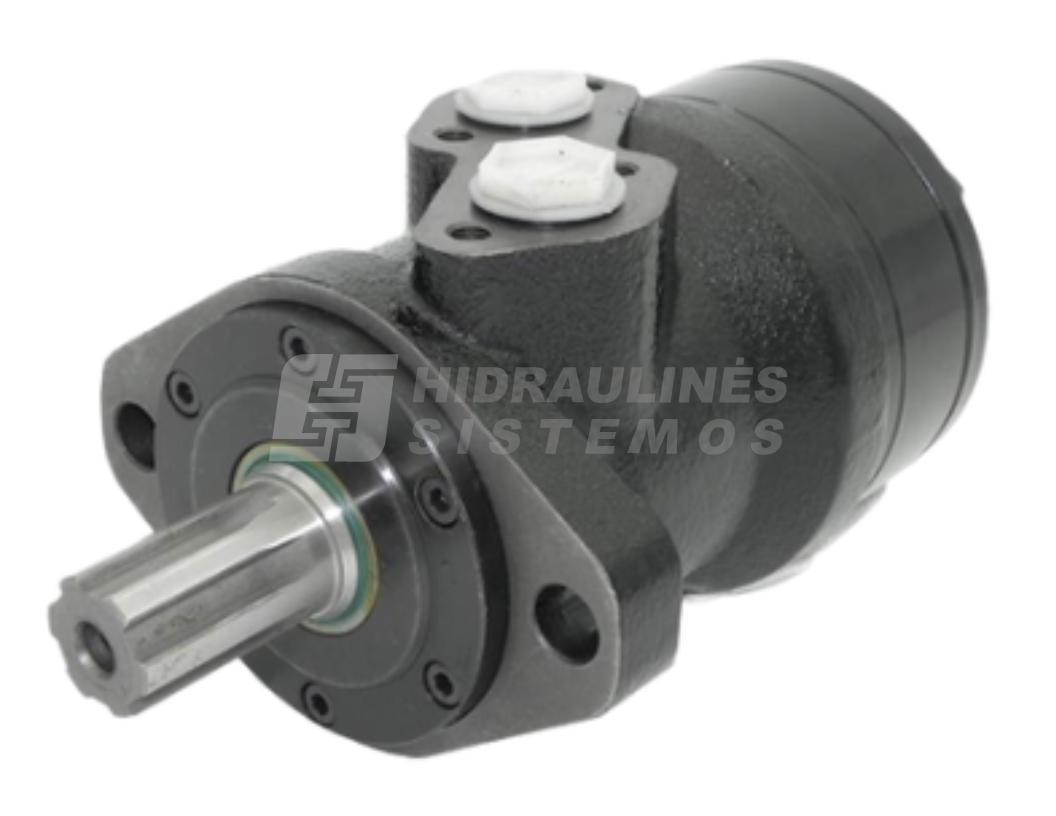

Hydraulic motor MR 125 SHD ziHYD BMRY-125 H3
Original price was: 228,00 €.126,00 €Current price is: 126,00 €. excl. VAT
EPRM125SH MR125SH OMR125SH OMRX125SH
Out of stock
EPRM125SH MR125SH OMR125SH OMRX125SH
Enter your email address and we will notify you as soon as the item is available.
Free delivery
for orders from €100
Product returns
within 30 business days
Fast pickup
in store
Have questions? Didn’t find the product?
Not sure if the product is suitable? Want to receive an offer? Submit an inquiry to us and we will reply within 1–2 business days.
Product information
Description

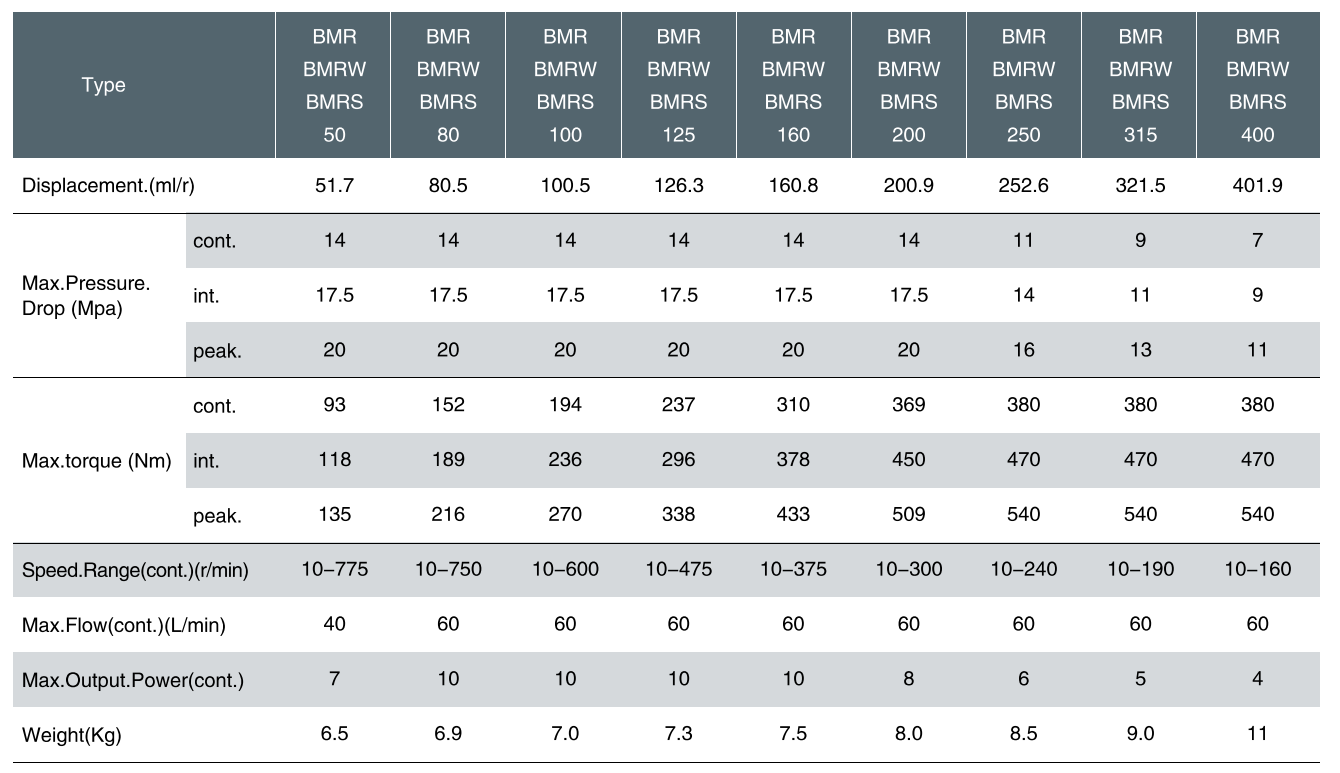

| Specification |
|---|
| Type: BMR-125 |
| Displacement: 126.3 ml/rev |
| Max. pressure drop (continuous): 14 MPa |
| Max. pressure drop (intermittent): 17.5 MPa |
| Max. pressure peak: 20 MPa |
| Max. torque (continuous): 237 Nm |
| Max. torque (intermittent): 296 Nm |
| Max. torque peak: 338 Nm |
| Continuous speed range: 10–475 rpm |
| Max. flow (continuous): 60 l/min |
| Max. output power (continuous): 10 kW |
| Weight: 7.3 kg |
Additional information
| Flange | 82.5mm 106.4mm, 2 bolts |
|---|---|
| Manufacturer | ziHYD |
| Connections | BSP 1/2” |
| Connection side/rear | Side |
| Type | Orbital (Gerotor) |
| Volume | 125 |
| Shaft | 6 teeth, 25.4mm |
